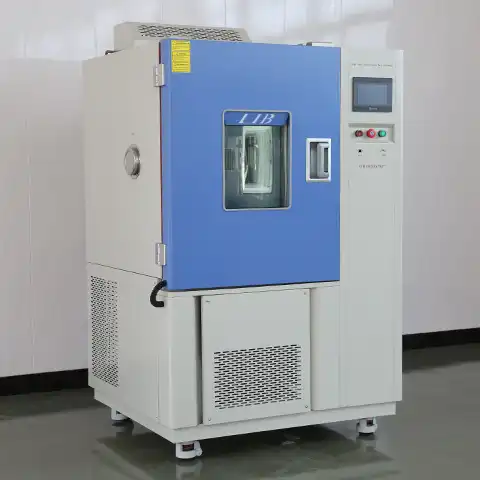

Constant Climate Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Standard and Custom Chambers
Temperature,climate,vibration,corrosion,altitude, pressure or combined test
Type: Benchtop, Floor Stand & Walk In
High-Precision Constant Climate Chamber - Professional Environmental Testing Solutions
Our Constant Climate Chamber gives the accuracy control you require for basic steadiness testing applications. Planned with progressed innovation and built to worldwide benchmarks, these chambers guarantee your tests are tried beneath ideal conditions. Whether you're conducting pharmaceutical solidness considers, nourishment shelf-life testing, or fabric inquire about, our items provide the unwavering quality and exactness your research facility demands.
Our chambers highlight state-of-the-art control frameworks that keep up remarkable solidness. The temperature variance remains inside ±0.5°C, with most extreme deviation beneath ±2.0°C. Stickiness control covers 20%–98% RH run with ±2.5% RH precision.The high-precision PT100 Lesson A temperature sensors give ±0.001°C determination. This guarantees your test information remains steady and dependable all through amplified testing periods.
Technical Specifications
Item | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Size (mm) | 400×500×500 | 500×600×750 | 700×800×900 | 800×1000×1000 | 1000×1000×1000 |
External Size (mm) | 900×1050×1620 | 1000×1140×1870 | 1200×1340×2020 | 1300×1540×2120 | 1500×1540×2140 |
Volume | 100L | 225L | 500L | 800L | 1000L |
Temp Range | -20 / -40 / -70℃ to +150°C | ||||
Humidity Range | 20–98% RH | ||||
Temp Fluctuation/Deviation | ±0.5°C/±2.0°C | ||||
Humidity Deviation | ±2.5% RH | ||||
Ramp Rate | Heating: 3°C/min, Cooling: 1°C/min | ||||
Cooling System | Mechanical compression (TECUMSEH) | ||||
Controller | LCD touch screen + Ethernet | ||||
Water Supply | Automatic + purification system | ||||
Material | SUS304 inner / coated steel outer | ||||
Window | Double-layer glass + silicone sealing | ||||
Standard | 1× cable port, 2 shelves | ||||
Performance Details
|
|
|

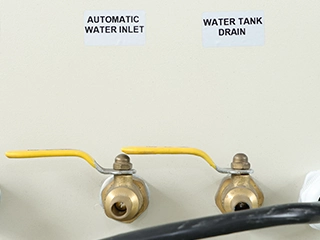

| Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; | Viewing Window Double layer insulating glass 8cm thick, made of tempered glass. Built-in LED light for the work room lighting |
|
|
What Makes Our Constant Climate Chamber Different?
A climatic test chamber must deliver more than controlled conditions—it must deliver consistent, reliable accuracy in real operation.
Precision Temperature Control
Stable temperature performance within ±0.5°C, achieved through PID intelligent control, PT100 sensors, and real-time compressor/heater adjustment.
Accurate Humidity Regulation
Dual humidity system combining refrigeration dehumidification and ultrasonic humidification ensures ±2% RH accuracy across the full range, supported by water quality monitoring.
Optimized Airflow Design
Horizontal laminar airflow ensures uniform conditions even under full load, with ±1.0°C temperature uniformity and ±3% RH humidity uniformity, eliminating hot spots and dead zones.
Built for Continuous Operation
Variable frequency compressors and energy-saving bypass technology reduce energy consumption by up to 30%, while improving long-term reliability and reducing maintenance costs.
Designed for Unattended Operation
Continuous Water Supply System: The automatic water inlet with built-in RO filtration connects directly to your facility's water supply. No manual refilling. No scale buildup damaging expensive sensors. Just months of uninterrupted operation.
Intelligent Monitoring & Alerts: Real-time remote monitoring via Ethernet or optional Wi-Fi. Receive instant email or SMS alerts for parameter deviations, power interruptions, or maintenance needs. Your test runs 24/7—but you don't have to.
Data Security & Backup: High-capacity internal storage archives two years of test data. Automatic USB backup and cloud upload options ensure your valuable test records are never lost, even during unexpected power failures.
Frequently Asked Questions
Q: Is it possible for your chamber to pass ICH stability testing?
A: With pre-programmed stability conditions and comprehensive validation documentation, our chambers are made especially for ICH Q1A (R2) compliance.
Q: Is FDA 21 CFR Part 11 supported by the chamber?
A: Definitely. For total regulatory compliance, our control system consists of electronic signatures, audit trails, user access levels, and tamper-proof data logging.
Q: What occurs when there is a power outage?
A: When power is restored, the system immediately resumes your scheduled test cycle, preserving all data and time-stamped failure logs.
Q: Can I keep an eye on exams from a distance?
A: Remote monitoring is possible with basic Ethernet connectivity, and smartphone access with real-time notifications via email or SMS is possible with optional Wi-Fi.
