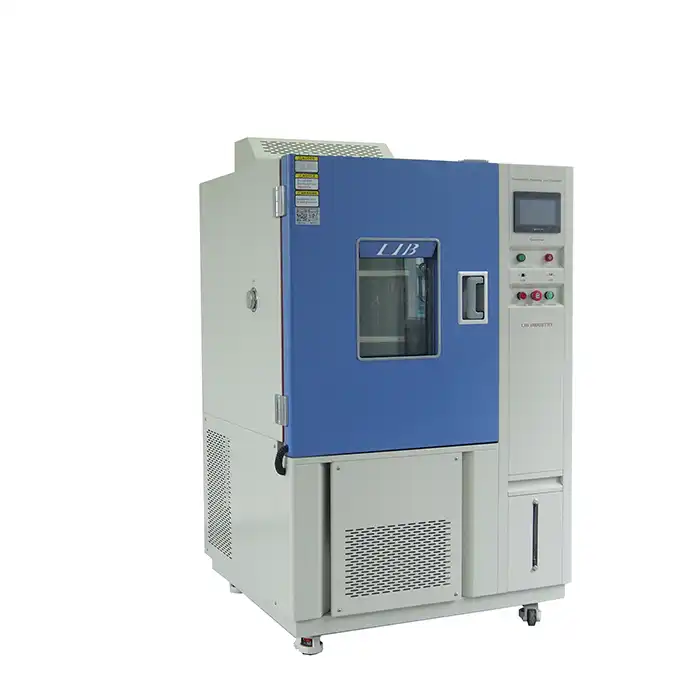

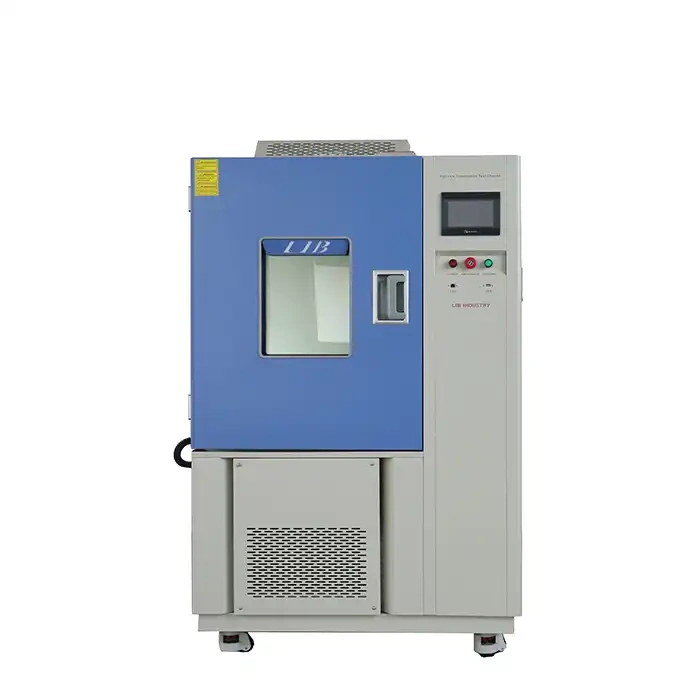

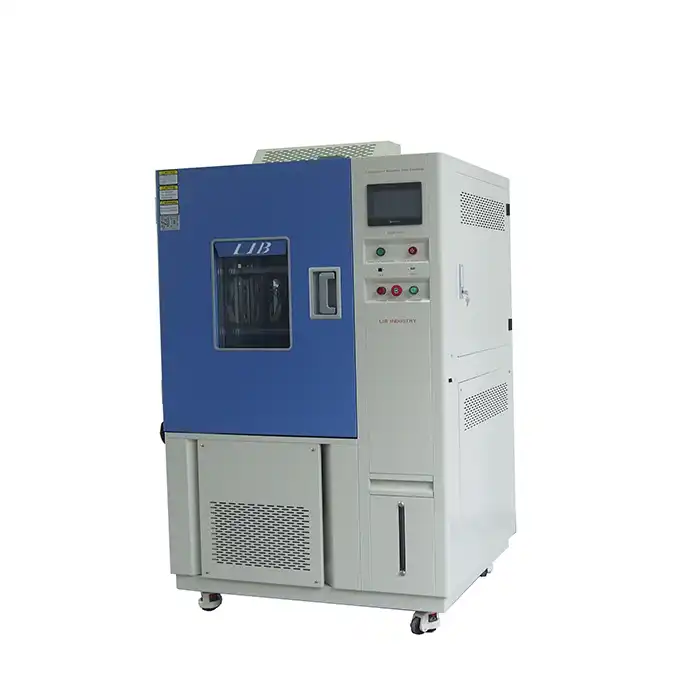

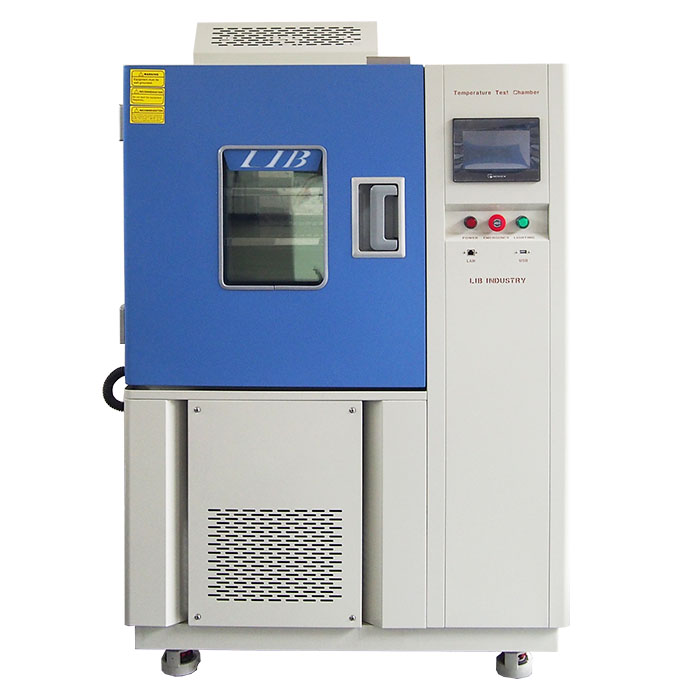

thermal cycling test chamber
Model:TR5-500
Lowest Temperature:-20℃/-40℃/-60℃/-70℃;
Cooling Rate:10 ℃ / min （average）
Heating Rate:10 ℃ / min （average)
The temperature ramp rate is controllable at 5℃ / 10℃ / 15℃ per minute.
Volume:100L, 225L, 500L, 800, 1000L, 2000L, 3000L
LIB Industry thermal cycling test chamber Manufacturer & Supplier
A thermal cycling test chamber is a specialized reliability testing device designed to subject materials and products to alternating high and low-temperature extremes at controlled rates. Unlike standard ovens, this equipment simulates repeated thermal fatigue to reveal latent defects caused by thermal mismatch. Your testing needs require precise temperature transitions to identify potential failures before they occur in real-world applications. The thermal cycling chamber addresses critical industry challenges where Coefficient of Thermal Expansion (CTE) mismatches between different materials can lead to micro-cracking, solder joint breaks, and seal failures.
LIB Industry's thermal cycling test chamber is used to simulate extreme temperature conditions for testing the performance and reliability of various products. It is commonly used in industries such as aerospace, automotive, electronics, and pharmaceutical.
The chamber is equipped with a temperature control system that can rapidly and accurately change the temperature within a specified range, with a rate of up to 5°C/min (10°C/min).
As an experienced thermal cycling test chamber manufacturer, LIB Industry offers standard and customized configurations backed by rigorous quality control and technical support.
Key Features of Our Thermal Cycling Chambers
Advanced Temperature Control System
Our chambers include industry-leading temperature consistency and soundness. The exactness control framework guarantees precise temperature moves all through your testing cycles. Each unit consolidates open ceramic-core nichrome radiators that keep up temperature exactness inside ±0.5°C.
Superior Refrigeration Technology
The cascade refrigeration framework utilizes premium components from eminent brands like Bitzer and Tecumseh. Our electronic extension valve (EEV) innovation gives exact stream control, decreasing vitality utilization by over 20% compared to conventional thermostatic extension valves. This plan altogether diminishes compressor mechanical weakness amid visit temperature changes.
Anti-Condensation Protection
The coordinates anti-condensation control framework guarantees example surfaces stay dry all through testing cycles. This secures important test tests from electrochemical movement dangers and potential short-circuiting amid fast temperature transitions.
Technical Specifications
Model | TR5-100 | TR5-225 | TR5-500 | TR5-800 | TR5-1000 |
Internal Size | 400×500×500 mm | 500×600×750 mm | 700×800×900 mm | 800×1000×1000 mm | 1000×1000×1000 mm |
External Size | 900×1050×1620 mm | 1000×1140×1870 mm | 1200×1340×2020 mm | 1300×1540×2120 mm | 1500×1540×2140 mm |
Volume | 100L | 225L | 500L | 800L | 1000L |
Temp Range | -20 / -40 / -70 to +150°C | ||||
Temp Fluctuation/Deviation | ±0.5°C/±2.0°C | ||||
Ramp Rate | Heating & Cooling: 5°C/min | ||||
Cooling System | Mechanical compression refrigeration,TECUMSEH compressor | ||||
Controller | LCD touch screen + Ethernet / PC Link | ||||
Sensor | PT100 Class A | ||||
Air Circulation | Centrifugal fan | ||||
Safety System | Over-temp / over-current / high-pressure / leakage protection | ||||
Material | SUS304 inner / coated steel outer | ||||
Insulation | Polyurethane foam + insulation cotton | ||||
Window | Double-layer glass + silicone sealing | ||||
Standard | Φ50 cable port, 2 shelves | ||||
Product Details
|
|
|

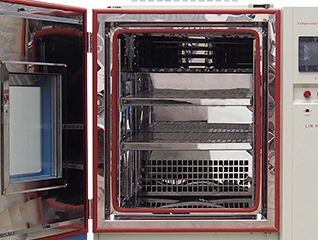

| SUS304 Workroom Engineered for extreme temperature shifts, the chamber’s interior maintains uniform airflow for consistent results. Durable construction supports repeated testing under harsh conditions. | Cable hole A standard test hole with plugs 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|
|
Key Features
The thermal cycling test chamber is equipped with the following key functions:
1. Temperature Cycling: Mimics rapid temperature changes for assessing product performance under extreme conditions.
2. Humidity Control: Humdity system as option
3. Data Logging: Captures and records test data for comprehensive analysis and reporting.
4. Safety Features: Overheat protection, door alarms, and emergency shutdown options ensure user safety and equipment protection.
5. Remote Monitoring: Allows users to monitor tests remotely for added convenience.
Why Choose LIB Industry?
Professional Quality Assurance
We take after strict ISO 9001 Quality Management System standards. All items carry CE certification and experience third-party testing by SGS and TUV specialists. This guarantees universal compliance, steady execution, and remarkable unwavering quality for your testing requirements.
Comprehensive After-Sales Support
Every thermal cycling test chamber comes with a 3-year guarantee and lifetime benefit commitment. Our 24/7 worldwide back group gives quick help. If repairs aren't conceivable inside the guarantee period, we'll give a brand-new substitution unit at no charge.
Custom Design Capabilities
Our building group exceeds expectations in non-standard plan and custom R&D arrangements. We make custom-made chambers that meet your particular testing conventions and industry prerequisites. Whether you require altered chamber measurements or specialized control highlights, we convey ideal solutions.
Global Service Network
With benefit centers in Malaysia, Canada, the United Kingdom, and the United States, we give localized back over major markets. Our arrange of 29 worldwide operators guarantees incite specialized help and save parts accessibility wherever your operations are found.
Contact us
Ready to enhance your thermal cycling test chamber reliability testing? Contact our technical specialists at ellen@lib-industry.com.
