Solar panels endure relentless temperature swings throughout their 25-to-30-year service life - baking under midday sun, then cooling sharply after sunset. Thermal cycling equipment replicates these punishing fluctuations inside a controlled laboratory environment, subjecting photovoltaic (PV) modules to repeated temperature ramps between extremes such as -40°C and +85°C. This accelerated stress exposes latent weaknesses in solder ribbons, encapsulant layers, glass-cell interfaces, and electrical connections long before panels reach rooftops. By compressing years of field exposure into weeks of laboratory testing, engineers gain the failure-mode data needed to refine materials, optimize manufacturing processes, and validate the long-term power output warranties that underpin investor confidence in solar energy projects worldwide.

​

A leading electronics testing lab shared their experience with our THR10-500A Thermal cycling equipmentand drying ovens: "Our THR10-500A chamber and drying ovens are working excellently, thank you. We are very happy with them." The stable performance of the chamber during intensive thermal cycling tests enabled the team to conduct extended burn-in procedures and repeated rapid temperature transitions without interruption. This reliability gave them confidence in accurately assessing the thermal resilience and durability of automotive electronics, sensors, and control modules. Beyond electronics, the equipment has proven highly effective in materials testing, plastic component aging, and battery performance evaluations, helping teams efficiently simulate real-world thermal conditions and optimize product longevity.

Why Solar Panels Require Thermal Cycling Testing?

​Decades of Outdoor Exposure and Temperature Extremes

A rooftop or ground-mounted solar array faces unshielded exposure to seasonal extremes - scorching summers, freezing winters, and everything between. Desert installations experience daily temperature differentials exceeding 50°C, while Nordic sites endure prolonged sub-zero conditions. Over a 25-year warranty period, a single panel can accumulate tens of thousands of thermal cycles, each one incrementally stressing internal interfaces and interconnects.

Cumulative Fatigue Mechanisms in PV Modules

Each temperature swing induces micro-scale expansion and contraction across dissimilar materials bonded together inside the module laminate. Fatigue cracks nucleate at stress concentration points - particularly solder joints connecting silicon cells to copper ribbons - and propagate cycle after cycle. Without thermal cycling evaluation, these slow-growing defects escape detection during routine electrical inspection at the factory gate.

Economic Stakes of Premature Panel Degradation

Solar project economics depend on predictable energy yield over decades. A module that degrades faster than warranted erodes investor returns, triggers warranty claims, and damages manufacturer reputation. Rigorous thermal cycling qualification using purpose-built test chambers catches vulnerable designs early, allowing corrections that safeguard both revenue streams and brand equity.

Temperature Stress in Photovoltaic Modules and Materials

CTE Mismatch Across Multi-Layer Module Stacks

Solar modules are laminated sandwiches - tempered glass, ethylene-vinyl acetate (EVA) encapsulant, silicon cells with metallic interconnects, a polymeric backsheet, and an aluminum frame. Each layer possesses a distinct coefficient of thermal expansion (CTE). When temperature changes, these layers stretch or contract at different rates, generating shear and peel stresses at every bonded interface.

Table 1: CTE Values of Common PV Module Materials

Thermomechanical Strain at Cell Interconnects

The CTE disparity between silicon (2.6 ppm/°C) and copper ribbon (17 ppm/°C) concentrates cyclic strain directly at the solder bond line. Repeated bending fatigues the solder alloy, nucleating cracks that increase series resistance and reduce power output. Thermal cycling chambers apply controlled ramp rates - typically 5°C to 15°C per minute - to replicate this strain accumulation under laboratory conditions.

Encapsulant and Backsheet Degradation Under Cyclic Stress

EVA and other encapsulants soften at elevated temperatures and stiffen at low temperatures during testing in a thermal cycling test chamber. Cycling between these states can initiate delamination from the cell surface or from the glass superstrate, creating pathways for moisture ingress. Backsheet polymers undergo analogous embrittlement, eventually cracking and compromising the module's electrical insulation integrity.

Testing Standards for Solar Panel Thermal Cycling Performance

IEC 61215 Thermal Cycling Requirements

IEC 61215 - the benchmark qualification standard for crystalline silicon PV modules - prescribes a TC200 test: 200 cycles between -40°C and +85°C with a maximum ramp rate and defined dwell times at each extreme. Modules must show no major visual defects, no wet leakage current failures, and no more than 5% maximum power degradation after completing the protocol.

Extended Cycling Protocols Beyond Minimum Qualification

Industry consensus increasingly recognizes that 200 cycles represent a bare minimum. Many manufacturers and independent test laboratories voluntarily extend cycling to TC400, TC600, or even TC1000 to differentiate premium products and satisfy stringent bankability requirements from project financiers. Extended protocols surface wear-out failure modes that shorter tests simply cannot reveal.

​

Table 2: Common Solar Panel Thermal Cycling Test Protocols

Combining Thermal Cycling with Humidity and Mechanical Load Tests

IEC 61215 also mandates sequential testing - thermal cycling followed by humidity-freeze (HF) cycles and mechanical load tests. This combined sequence mimics the synergistic stresses modules encounter in the field. Thermal cycling equipment capable of precise ramp control and stable dwell temperatures streamlines these sequential campaigns without requiring specimen transfers between separate chambers.

Simulation of Day-Night Temperature Fluctuations in Solar Installations

Programmable Ramp Rates for Realistic Profiles

Real-world solar panels heat and cool at rates governed by solar irradiance, wind speed, and ambient temperature. A controllable ramp rate - selectable at 5°C, 10°C, or 15°C per minute - allows test engineers to tailor profiles that mirror specific geographic conditions. Slower ramps replicate temperate climates; steeper ramps simulate arid environments with abrupt post-sunset cooling.

Dwell Periods and Thermal Equilibrium Considerations

Modules must reach uniform internal temperature before a meaningful thermal cycle is recorded. Dwell times at the hot and cold extremes guarantee that the innermost layers - including the cell-EVA interface - equilibrate fully. Inadequate dwell periods understate the true stress experienced by embedded interconnects, producing misleadingly optimistic qualification results.

Climate-Specific Test Profile Design

A panel destined for the Arabian Peninsula faces a different thermal envelope than one installed in Scandinavia. Engineers design custom cycling profiles - adjusting upper and lower temperature limits, ramp rates, and cycle counts - to replicate the target deployment climate. Programmable controllers with Ethernet connectivity and PC link capability simplify the creation and storage of these bespoke profiles.

Evaluating Glass, Encapsulation Materials, and Electrical Connections

Solder Ribbon Fatigue and Cell Interconnect Integrity

Electroluminescence (EL) imaging before and after testing with thermal cycling test equipment reveals inactive cell areas caused by cracked solder joints. As cracks propagate, series resistance climbs and module fill factor drops. Quantifying this degradation through I-V curve measurements at defined cycle intervals provides a fatigue growth rate that informs solder alloy selection and ribbon geometry optimization.

EVA Yellowing and Delamination Detection

Prolonged thermal cycling accelerates EVA discoloration, particularly in the presence of residual crosslinking byproducts. Yellowed encapsulant absorbs a portion of the incident light spectrum, reducing short-circuit current. Visual inspection, transmittance spectroscopy, and C-mode scanning acoustic microscopy together quantify the extent and progression of encapsulant degradation throughout the cycling campaign.

Junction Box and Connector Reliability Under Cycling

Junction boxes and cable connectors mounted on the module backsheet endure the same thermal excursions as the laminate itself. Solder connections within the junction box, adhesive bonds securing it to the backsheet, and the bypass diode operating temperature all warrant scrutiny. Post-cycling insulation resistance and wet leakage tests confirm that electrical safety margins remain intact.

Improving Long-Term Solar Panel Reliability Through Environmental Testing

Correlating Accelerated Test Data with Field Performance

Acceleration factors - derived from Arrhenius or Coffin-Manson models - translate laboratory cycle counts into equivalent years of field exposure. Validated correlation allows manufacturers to predict real-world degradation rates from chamber test results, bridging the gap between a two-week laboratory campaign and a 25-year performance warranty.

Design Iteration Based on Failure Mode Analysis

Each failure mode uncovered during thermal cycling feeds back into a continuous improvement loop. Solder cracking may prompt a shift to a more fatigue-resistant alloy; delamination may drive adoption of a higher-adhesion encapsulant formulation. This iterative process, grounded in empirical chamber data, progressively hardens the module design against thermomechanical stress.

Building Warranty Confidence Through Rigorous Qualification

Module bankability - the willingness of financial institutions to fund solar projects - hinges on robust qualification evidence. Extended thermal cycling reports from accredited laboratories, generated using calibrated and traceable environmental chambers, furnish the documentation that due-diligence teams demand before committing capital to large-scale photovoltaic installations.

Reliable Performance Under Extreme Temperature Swings - LIB Industry

​​	​​​​​​​​
Name	Fast Change Rate Thermal Cycle Chamber
Temperature range	-70℃ ～+150 ℃
Explosion-Proof Design	explosion-proof door chains, explosion-proof viewing window, smoke detector, and fire suppression sprinkler system Explosion-proof enclosure
Low type	A: -70℃ B:-40℃ C -20℃
Temperature fluctuations	± 0.5 ℃
Humidity Range	20%~98%
Heating rate	5 ℃/15 ℃ / min
Cooling rate	5 ℃/15℃ / min
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Exterior material	Steel Plate with protective coating
Interior material	SUS304 stainless steel
Standard configuration	1 Cable hole (Φ 50) with plug; 2 shelves
Timing Function	0.1~999.9 (S,M,H) settable

Wide Temperature Range and Controllable Ramp Rates

LIB Industry's thermal cycling equipment delivers temperature ranges spanning -70°C to +150°C, comfortably enveloping the -40°C to +85°C window mandated by IEC 61215. Ramp rates are selectable at 5°C, 10°C, or 15°C per minute, enabling engineers to match test profiles to any climate scenario without hardware modifications. Temperature fluctuation is held within ±0.5°C and deviation within ±2.0°C - precision critical for repeatable, standards-compliant results.

Scalable Chamber Volumes for Full-Size Module Testing

LIB offers volumes from 100 L through 1000 L and beyond - including 2000 L and 3000 L custom configurations - accommodating everything from small material coupons to full-size 72-cell photovoltaic modules.

Safety, Connectivity, and Custom Configurations

Every thermal cycling machine incorporates over-temperature protection, over-current protection, refrigerant high-pressure safeguards, and earth leakage protection. An explosion-proof door and viewing window, smoke detector with buzzer, and water spray system provide additional safety layers. Ethernet-connected programmable LCD touch screen controllers enable remote monitoring and seamless integration with laboratory information management systems. Cable holes (50 mm / 100 mm / 200 mm) with silicone plugs route sensor leads and power cables into the test space without compromising thermal integrity. Custom models addressing unique specimen dimensions or performance specifications are available on request.

Conclusion

Thermal cycling testing stands as a cornerstone of solar panel qualification, revealing the fatigue-driven degradation mechanisms that threaten long-term energy yield. By subjecting modules to thousands of controlled temperature ramps, engineers identify vulnerable solder joints, encapsulant interfaces, and electrical connections before products enter the field. Adherence to IEC 61215 - and increasingly to extended cycling protocols - ensures modules meet the reliability expectations embedded in 25-year performance warranties. Purpose-built thermal cycling equipment with precise ramp control, wide temperature ranges, and scalable volumes empowers PV manufacturers to deliver panels that perform consistently across the planet's most demanding climates.

FAQ

What temperature range does IEC 61215 require for solar panel thermal cycling?

IEC 61215 specifies cycling between -40°C and +85°C. Modules must complete 200 cycles (TC200) and demonstrate no more than 5% maximum power degradation along with no critical visual defects.

Why are extended thermal cycling protocols (TC400, TC600) gaining popularity?

Extended protocols expose wear-out failure modes - such as advanced solder fatigue and encapsulant delamination - that remain undetectable within the standard 200-cycle qualification, satisfying increasingly stringent bankability demands from project financiers.

Can LIB Industry thermal cycling chambers accommodate full-size PV modules?

LIB offers chamber volumes up to 1000 L in standard models and 2000 L or 3000 L in custom configurations, providing ample interior space for full-size 60-cell or 72-cell photovoltaic modules.

Need a dependable thermal cycling equipment manufacturer and supplier for your solar panel testing laboratory? LIB Industry provides turnkey environmental testing solutions - from design and production through installation and training. Reach out at ellen@lib-industry.com to discuss your PV module durability testing needs.

In the world of environmental testing, the UV weather resistance test chamber plays a crucial role in ensuring products can withstand the rigors of outdoor conditions. This specialized equipment simulates the effects of ultraviolet (UV) radiation, temperature, and humidity on various materials, helping manufacturers predict the durability and longevity of their products. Whether you're in the automotive, construction, or materials research industries, understanding the functionality and benefits of a UV weathering test chamber is essential.

What is a UV Weathering Test Chamber?

A UV weathering test chamber is designed to replicate the damaging effects of sunlight, rain, and dew. These chambers use fluorescent UV lamps to simulate the sun's ultraviolet radiation, combined with controlled temperature and humidity cycles. This combination allows researchers and manufacturers to accelerate the weathering process, observing the potential degradation of materials over a shorter period compared to natural exposure. Here's an in-depth look at their key features and functionalities:

UV Lamps

The core component of a UV weathering test chamber is its UV lamps, which mimic the ultraviolet (UV) radiation from the sun. UV radiation is a major factor in material degradation, causing photochemical reactions that can lead to fading, embrittlement, and cracking.

- Types of UV Lamps:

Fluorescent UV Lamps: These lamps are commonly used to reproduce UV-A and UV-B radiation, which are significant in the aging process. They are designed to emit a spectrum of light that closely resembles the sun’s UV radiation.

Xenon Arc Lamps: For more precise simulation, xenon arc lamps can be used. They produce a broad spectrum of light, including UV, visible, and infrared, more closely mimicking natural sunlight.

- Intensity and Wavelength: The intensity and wavelength of UV light in the UV weathering test chamber can be adjusted to simulate different geographic locations and times of the year. This flexibility helps in testing how materials perform under various environmental conditions.

Temperature Control

Temperature control within the chamber is crucial for replicating the thermal effects of the environment. Materials can degrade differently at varying temperatures, so precise temperature regulation allows for accurate simulation of conditions.

- Heating and Cooling Systems: The chamber is equipped with both heating and cooling systems to achieve and maintain the desired temperatures. These systems ensure that the materials are exposed to temperatures that can mimic extreme heat, cold, or fluctuating conditions.

- Temperature Ranges: Typical temperature ranges can be set to replicate various climates, from freezing temperatures in polar regions to high temperatures in desert environments. This range is essential for understanding how materials will perform in different geographic locations.

Humidity Control

Humidity control in UV weathering test chambers is used to simulate the effects of rain and dew on materials. Moisture can exacerbate the degradation process by interacting with UV radiation and temperature changes.

- Condensation and Water Spray: Chambers often include systems to generate condensation and water spray. This feature mimics the effects of dew and rain, which can lead to additional material wear and tear.

- Humidity Levels: The UV weathering test chamber can maintain various humidity levels to test how materials withstand different moisture conditions. High humidity can lead to issues such as mold growth, while low humidity can cause materials to dry out and crack.

What Are the Benefits of Using UV Weathering Test Chambers

Investing in a UV weathering test chamber offers numerous benefits for manufacturers and researchers alike. These chambers provide valuable insights into how materials will perform over time when exposed to harsh environmental conditions.

Accelerated Testing

One of the most significant advantages is the ability to speed up the testing process. Instead of waiting months or years to see how a material performs outdoors, a UV weathering test chamber can provide results in a matter of weeks. This accelerated testing is crucial for product development cycles, allowing for faster improvements and time-to-market.

Improved Product Durability

By simulating real-world conditions, manufacturers can identify potential weaknesses in their products. This proactive approach enables them to enhance the durability and longevity of their materials, ensuring better performance and customer satisfaction.

Cost-Effective Research

Conducting outdoor exposure tests can be expensive and time-consuming. UV weathering test chambers offer a cost-effective alternative by providing controlled, repeatable conditions. This control not only reduces testing costs but also minimizes the variability inherent in outdoor testing environments.

What Are the Applications of UV Weathering Test Chambers

UV weathering test chambers are utilized across various industries to ensure product reliability and performance. UV weathering test chamber manufacturers play a crucial role in providing these essential tools for testing. Here are a few key applications:

Automotive Industry

In the automotive sector, materials such as plastics, paints, and coatings must withstand prolonged exposure to sunlight and varying weather conditions. UV weathering test chambers help automotive manufacturers test the resilience of these materials, ensuring they maintain their appearance and functionality over time.

Construction Materials

Building materials, including roofing, siding, and sealants, are exposed to the elements daily. Testing these materials in a UV weathering chamber allows manufacturers to predict their lifespan and make necessary improvements to enhance durability.

Consumer Goods

Products like outdoor furniture, textiles, and packaging are constantly exposed to UV radiation and weather changes. By using UV weathering test chambers, manufacturers can ensure these goods remain attractive and functional for consumers, even after extended outdoor use.

Research and Development

In the field of materials science, researchers use UV weathering test chambers to study the degradation mechanisms of various substances. This research helps in the development of new, more resilient materials and coatings, advancing technology and innovation.

Conclusion

The UV weather resistance test chamber is an indispensable tool for industries that rely on the durability and longevity of their products. By simulating the effects of UV radiation, temperature, and humidity, these chambers provide valuable insights that drive innovation and improve product performance. From accelerated testing and improved durability to cost-effective research, the benefits of using UV weathering test chambers are clear. Embracing this technology not only ensures better products but also fosters a competitive edge in the market.

For more information about UV weathering test chambers or to discuss your specific testing needs, feel free to contact us at info@libtestchamber.com. We're here to help you achieve the highest standards of quality and reliability in your products.

References

1. ASTM G154-21: Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Non-Metallic Materials ASTM International. (2021).

2. ISO 4892-3: Plastics – Methods of Exposure to Laboratory Light Sources – Part 3: Fluorescent UV Lamps International Organization for Standardization (ISO). (2020).

3. "Accelerated Weathering Testing: How to Test Materials for Durability" J. Smith, Materials Science Review, 2022.

4. "The Role of UV Weathering Chambers in Product Development" H. Thompson, Journal of Environmental Testing, 2021.

5. "Understanding the Effects of UV Radiation on Materials" R. Patel, Polymer Science & Engineering, 2019.

6. "Temperature and Humidity Control in UV Weathering Chambers" K. Lee, Test Chamber Technology, 2023.

The JIS Z 2371 salt spray test chamber operates through a systematic procedure: prepare the salt solution (5% NaCl), set chamber temperature to 35°C with 95-98% RH, position samples at designated angles (15° or 20°), activate the atomization system to maintain 1-2ml/80cm² hourly deposition, run continuous or cyclic spray programs, and collect settlement data using calibrated funnels. LIB Industry's chambers automate these steps with programmable controllers, ensuring compliance with neutral salt spray (NSS), acetic acid spray (AASS), and copper-accelerated (CASS) test protocols while maintaining precision pH control and temperature stability.

What is the JIS Z 2371 Salt Spray Test Standard?

Origin and Regulatory Framework

JIS Z 2371 constitutes the Japanese Industrial Standard governing salt spray corrosion testing methods. Developed by the Japanese Standards Association, this specification defines procedures for evaluating metallic and non-metallic materials' resistance to saline environments. The standard aligns with international protocols like ASTM B117 while incorporating unique Japanese precision requirements. Manufacturing sectors globally recognize JIS Z 2371 certification as evidence of superior corrosion resistance, particularly in high-humidity coastal regions where salt-laden air accelerates degradation.

Three Test Methods Defined

The standard encompasses three distinct methodologies. Neutral Salt Spray (NSS) testing employs a 5% sodium chloride solution at pH 6.5-7.2, simulating general atmospheric corrosion. Acetic Acid Salt Spray (AASS) introduces glacial acetic acid to lower pH to 3.1-3.3, creating more aggressive conditions for decorative coatings. Copper Accelerated Acetic Acid Salt Spray (CASS) adds copper chloride to the acidic solution, dramatically intensifying corrosion rates for rapid assessment of anodized aluminum and thin organic coatings.

Application Industries and Materials

Automotive manufacturers utilize JIS Z 2371 protocols to validate painted body panels, fasteners, and undercarriage components. Electronics producers test printed circuit boards, connectors, and housing materials. The marine industry applies these methods to evaluate shipbuilding materials, offshore equipment, and hardware assemblies. LIB Industry's chambers accommodate diverse sample geometries through customizable holder configurations, supporting quality control across these varied applications.

Key Parameters in the JIS Z 2371 Salt Spray Test Procedure

Temperature and Humidity Requirements

Temperature uniformity affects corrosion kinetics significantly. LIB Industry JIS Z 2371 salt spray test chamber's dual temperature control system maintains chamber conditions independent of external fluctuations through multi-layer insulation. The advanced air saturator design employs premium SUS304/316 stainless steel construction, achieving ±0.1°C precision. This eliminates thermal gradients that could skew results, ensuring consistent exposure across all sample positions.

Salt Solution Composition and pH Control

NSS testing demands 50±5 grams of sodium chloride per liter of distilled water, while AASS requires additional glacial acetic acid to achieve pH 3.1-3.3. CASS testing incorporates 0.26±0.02 grams copper chloride per liter alongside acetic acid. Solution preparation accuracy directly impacts test validity. Our brine mixing system maintains homogeneous salt concentration through continuous circulation, preventing stratification during extended test cycles. Built-in pH monitoring ports enable quick verification without disrupting test conditions.

Settlement Rate Verification

JIS Z 2371 specifies 1.0-2.0 milliliters of solution must collect per 80 square centimeters hourly. This measurement validates proper atomizer function and fog density. LIB Industry's movable funnel collectors position anywhere within the chamber, accommodating various sample arrangements while ensuring accurate settlement measurement. The fog measure cylinder provides graduated markings for precise volume determination. Our programmable controllers automatically log settlement data, creating audit-ready traceability documentation.

How to Set Up a Salt Spray Test Chamber According to JIS Z 2371?

Pre-Test Chamber Preparation

Begin by inspecting the glass fiber reinforced plastics (FRP) interior for residue from previous tests. Clean all surfaces with distilled water, avoiding abrasive materials that might damage the chamber lining. Verify the saturated air barrel contains sufficient distilled water and heating elements function correctly. Check spray nozzle integrity - LIB Industry's nozzles resist high temperatures, corrosion, and clogging, but periodic visual inspection ensures optimal atomization patterns.

Sample Positioning and Holder Configuration

Position test specimens at angles specified by the standard - typically 15° or 20° from vertical. LIB Industry's pre-calibrated V-type and O-type holders eliminate manual angle adjustments, ensuring immediate compliance. The standard configuration includes six round bars and five V-shaped grooves accommodating flat panels, threaded fasteners, and irregularly shaped components. Arrange samples so condensate drains away rather than pooling on horizontal surfaces. Maintain adequate spacing to prevent shadowing effects where one sample blocks fog exposure to adjacent pieces.

Solution Preparation and System Priming

Dissolve reagents in distilled or deionized water meeting conductivity requirements below 20 μS/cm. Filter the solution to remove particulates that could clog atomizers. Fill the external salt water tank to marked levels - LIB Industry Temperature uniformity affects corrosion kinetics significantly. LIB Industry JIS Z 2371 salt spray test chamber's dual temperature control system maintains chamber conditions independent of external fluctuations through multi-layer insulation. The advanced air saturator design employs premium SUS304/316 stainless steel construction, achieving ±0.1°C precision. This eliminates thermal gradients that could skew results, ensuring consistent exposure across all sample positions.

's automatic water refill system prevents dry-running damage by monitoring reservoir levels continuously. Activate the brine circulation pump, allowing solution to equilibrate temperature and concentration before initiating spray.

JIS Z 2371 Salt Spray Test Chamber Test Process

Initialization and Parameter Programming

Power up the chamber and access the programmable controller. LIB Industry's systems support 120 programs with 100 steps each, enabling complex cyclic protocols. Input temperature setpoints, spray duration, and rest periods matching your selected test method. NSS typically runs continuously for 24-720 hours depending on material type. AASS and CASS tests may employ alternating spray and dry cycles. The controller automatically records temperature, spray duration, and settlement data throughout execution, eliminating manual logging errors.

Monitoring and Data Collection

During testing, visually inspect the chamber through transparent observation windows without opening the door, which would disrupt temperature and humidity equilibrium. LIB Industry's modified V-shaped transparent top design prevents condensation from dripping onto specimens, maintaining test validity. Every eight hours for continuous tests, measure settlement rate using the fog collector. Document readings on standardized forms or export directly from the digital controller. The humidifier dry-combustion protection, over-temperature protection, and over-current protection systems activate automatically if parameters drift outside acceptable ranges.

Sample Evaluation and Post-Test Procedures

Upon test completion, carefully remove samples and rinse gently with distilled water below 38°C to halt corrosion reactions. Avoid mechanical contact with corroded surfaces during rinsing. Dry specimens using clean compressed air or ambient temperature exposure. Evaluate corrosion extent according to JIS Z 2371 rating scales, documenting blister size, rust coverage percentage, and coating adhesion. Photograph specimens under standardized lighting for archival records. Clean the chamber interior thoroughly, draining residual solution and flushing spray lines with distilled water to prevent salt crystallization.

Troubleshooting Common Issues

Insufficient settlement rates often indicate clogged nozzles or inadequate air pressure. LIB Industry Temperature uniformity affects corrosion kinetics significantly. LIB Industry JIS Z 2371 salt spray test chamber's dual temperature control system maintains chamber conditions independent of external fluctuations through multi-layer insulation. The advanced air saturator design employs premium SUS304/316 stainless steel construction, achieving ±0.1°C precision. This eliminates thermal gradients that could skew results, ensuring consistent exposure across all sample positions.

's nozzles feature easy-clean designs - simply remove and flush with warm distilled water. Low air pressure may require compressor adjustment or saturator barrel inspection. Uneven corrosion patterns across multiple samples suggest temperature gradients or fog distribution problems. Verify saturator operation and check for obstructions blocking air flow. pH drift during extended tests indicates solution degradation; replace the salt solution and verify reservoir contamination hasn't occurred.

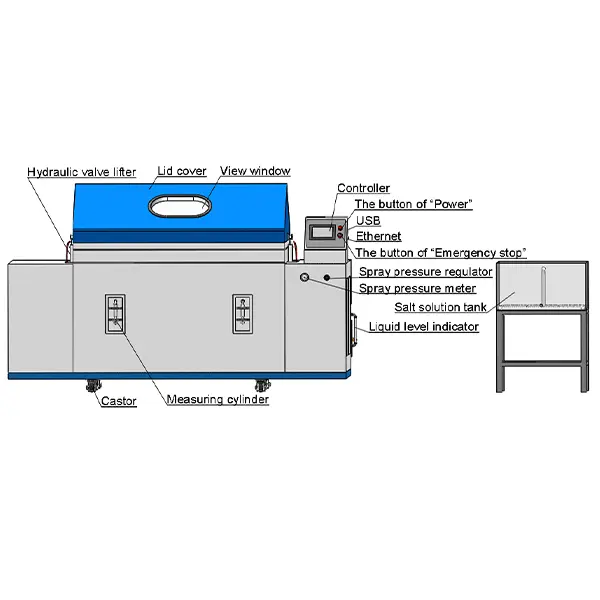

LIB JIS Z 2371 Salt Spray Test Chamber

Multi-Model Range for Diverse Applications

LIB Industry manufactures six chamber models spanning 110 to 1600 liters internal volume. The compact S-150 (590×470×400mm) suits laboratory environments with space constraints, accommodating small batch testing of fasteners, connectors, or coating panels. Mid-range models S-250 and S-750 serve general manufacturing quality control needs. Large-capacity units S-010, S-016, and S-020 accommodate automotive body panels, marine equipment assemblies, and high-volume production testing. All models maintain identical temperature precision (±0.5°C fluctuation, ±2.0°C deviation) regardless of chamber size.

Advanced Engineering Features

The saturated air barrel employs premium SUS304/316 stainless steel construction, precisely humidifying and heating compressed air while eliminating contaminants. This component delivers uniform moisture distribution with temperature control reaching ±0.1°C accuracy. Independent chamber and laboratory temperature controls prevent external interference through multi-layer insulation, isolating internal conditions from ambient fluctuations. The atomizer tower and spray nozzle system generates fog particles within the 1-40 micrometer range specified by JIS Z 2371, ensuring proper deposition characteristics.

Customization and Global Support

LIB Industry's engineering team specializes in non-standard designs matching unique testing requirements. Automotive manufacturers might need extended chambers for complete door assemblies. Aerospace suppliers may require specialized holders for turbine blades or landing gear components. Our customization expertise extends to material compatibility - while standard chambers use FRP construction, certain applications demand full stainless steel interiors. Every unit includes a three-year warranty with lifetime service support. Our 24/7 global response team provides rapid assistance, with complete unit replacement available if repairs prove impossible during warranty periods.

FAQ

How often should I replace the salt solution in my JIS Z 2371 salt spray test chamber during extended testing?

Replace the solution when pH drifts beyond specified ranges (6.5-7.2 for NSS, 3.1-3.3 for AASS/CASS) or visible contamination appears. Continuous NSS tests exceeding 500 hours typically require weekly solution changes. Monitor settlement rates - declining deposition often indicates degraded solution chemistry requiring replacement.

Can one chamber perform all three JIS Z 2371 test methods (NSS, AASS, CASS)?

Quality chambers like LIB Industry's models accommodate all three methodologies through programmable temperature control and solution flexibility. CASS testing requires higher temperatures (50°C versus 35°C), which modern dual-control systems handle seamlessly. Thorough cleaning between test types prevents cross-contamination affecting result validity.

What causes uneven corrosion patterns on samples, and how can I prevent this issue?

Uneven corrosion typically results from improper sample positioning blocking fog exposure, temperature gradients within the chamber, or condensate dripping. Position specimens at correct angles using calibrated holders, verify saturator function maintains uniform temperature distribution, and ensure the chamber's anti-drip top design prevents condensation from contaminating samples during testing.

Partner with LIB Industry for Precision Corrosion Testing Solutions

LIB Industry delivers turn-key JIS Z 2371 salt spray test chamber solutions as a trusted manufacturer and supplier. Our Japanese-engineered chambers combine precision controls, robust FRP construction, and customizable configurations tailored to your testing requirements. From initial design through installation and training, we provide comprehensive support backed by ISO 9001 certification and CE compliance. Contact our technical team at ellen@lib-industry.com to discuss your corrosion testing needs today.

Marine equipment operates under some of the most demanding conditions imaginable - constant exposure to saltwater, extreme hydrostatic pressures, and relentless environmental stresses that can compromise even the most robust designs. Water immersion tank testing has become indispensable for manufacturers seeking to validate the reliability and waterproof integrity of navigation systems, underwater sensors, submersible components, and shipboard electronics. By replicating real-world submersion scenarios in controlled laboratory environments, these specialized testing chambers enable engineers to identify potential failure points before deployment, ensuring that critical marine equipment performs flawlessly when lives and missions depend on it. This comprehensive approach to validation not only meets stringent international standards but also delivers the confidence that equipment will withstand years of oceanic service.

Why Is Water Immersion Testing Critical for Marine Equipment?

Preventing Catastrophic Equipment Failures at Sea

Marine equipment failures don't just result in financial losses - they can endanger lives, compromise missions, and damage marine ecosystems. A water immersion tank provides controlled verification that sealed enclosures, electronic housings, and protective casings maintain their integrity when submerged. Testing reveals microscopic seal defects, material degradation points, and design vulnerabilities that visual inspection cannot detect. Manufacturers who skip comprehensive immersion validation risk catastrophic field failures that could have been prevented through systematic laboratory testing.

Regulatory Compliance and Certification Requirements

Maritime authorities worldwide mandate rigorous waterproofing standards for equipment deployed in ocean environments. International Electrotechnical Commission (IEC) standards, military specifications, and classification society requirements all reference specific immersion testing protocols. A water immersion tank enables manufacturers to demonstrate compliance with IP67, IP68, and higher ingress protection ratings. Documentation from controlled immersion testing provides the evidence required for certification, insurance coverage, and customer acceptance in maritime markets.

Cost Reduction Through Early Design Validation

Identifying waterproofing weaknesses during the design phase costs significantly less than addressing failures after production or deployment. Immersion testing chambers allow iterative testing of prototypes, seal configurations, and material selections before committing to full-scale manufacturing. Engineers can evaluate multiple design variations systematically, optimizing for both performance and manufacturability. This front-loaded validation approach prevents expensive redesigns, warranty claims, and reputation damage that accompany field failures.

Harsh Marine Environments and Corrosion Challenges

Saltwater Penetration and Electrochemical Degradation

Seawater contains approximately 35,000 parts per million of dissolved salts, creating an aggressive electrolyte that accelerates corrosion and electrical degradation. Even microscopic breaches in protective housings allow saltwater ingress that initiates devastating electrochemical reactions. Immersion testing chambers equipped with saline solution capability replicate this corrosive environment, revealing how quickly seals degrade and which materials resist galvanic corrosion. Testing with actual seawater composition provides realistic degradation timelines that pure water testing cannot replicate.

Pressure-Induced Seal Compression and Failure

Marine equipment operating at depth experiences tremendous hydrostatic forces that compress seals, distort housings, and force water through microscopic gaps. A water immersion tank with pressure simulation capabilities replicates the forces encountered at operational depths up to 50 meters or beyond. O-rings, gaskets, and mechanical seals that appear adequate at atmospheric pressure may fail dramatically when subjected to sustained hydrostatic loading. Pressure testing identifies the exact depth ratings where seal integrity becomes compromised.

Temperature Cycling and Thermal Expansion Differentials

Ocean temperatures vary dramatically between tropical surface waters and cold deep-sea environments, causing materials to expand and contract at different rates. These thermal cycles create gaps in assemblies designed with inadequate thermal compensation. Advanced immersion testing chambers incorporate temperature control systems that cycle between temperature extremes while maintaining submersion, revealing thermal-mechanical weaknesses. Materials selection proves critical when components must maintain watertight integrity across 40°C temperature swings.

Simulation of Submersion and Saltwater Exposure

Replicating Authentic Oceanic Conditions

Laboratory testing must accurately mirror the complex interactions of pressure, salinity, temperature, and duration that equipment encounters in actual marine service. A water immersion tank configured for marine testing incorporates controlled saline concentration, adjustable hydrostatic pressure, and programmable immersion cycles. The R78-600 model, with its 1500mm internal height and 50-meter depth pressure capability, provides sufficient volume for substantial marine components while maintaining precise environmental control. Authenticity in testing conditions directly correlates with predictive accuracy for field performance.

Extended Duration Testing for Long-Term Reliability

Marine equipment often operates continuously for months or years between maintenance intervals. Short-duration immersion tests may miss progressive seal degradation, material swelling, or cumulative fatigue effects. Extended immersion protocols ranging from 72 hours to several weeks reveal time-dependent failure mechanisms that accelerated testing overlooks. Programmable controllers enable automated cycling between submersion and atmospheric exposure, simulating repeated dive profiles or tidal variations that stress seals through repeated compression and relaxation cycles.

Post-Immersion Functional Verification

Waterproof integrity represents only one dimension of marine equipment reliability - the device must also maintain full operational capability after immersion exposure. Comprehensive testing protocols include electrical continuity verification, sensor calibration checks, and functional performance testing immediately following tank removal. Moisture intrusion measurement using precision humidity sensors or weight comparison detects even minimal water ingress. This holistic approach ensures that equipment doesn't just exclude water but continues performing its intended function flawlessly after environmental exposure.

How Do Tanks Replicate Real Marine Operating Conditions?

Pressurization Systems and Depth Simulation

Table 1: Pressure Equivalents for Marine Depth Simulation

Precision pressure control systems within immersion tanks gradually increase hydrostatic forces to simulate specific operational depths. Pneumatic lid mechanisms on models like the R78-600 ensure safe containment during pressurization cycles. Pressure transducers monitor real-time conditions while programmable controllers maintain setpoints within narrow tolerances. Gradual pressurization rates prevent shock loading that could invalidate test results by causing failures unrealistic to actual deployment scenarios.

Automated Water Quality and Temperature Management

Marine testing requires consistent water chemistry throughout extended test durations. Integrated water supply systems with storage tanks ensure continuous availability while filtration systems remove particulates that could interfere with seal surfaces. Temperature control capabilities range from near-freezing conditions simulating Arctic waters to elevated temperatures replicating tropical deployments. The programmable color LCD touchscreen controller enables complex thermal profiles with up to 120 programs of 100 segments each, facilitating sophisticated test protocols that mirror actual mission profiles.

Safety Features and Operational Reliability

Industrial-grade water immersion tanks incorporate multiple safety mechanisms protecting both operators and test specimens. Reinforced A3 steel plate construction with 15mm wall thickness withstands internal pressurization without deformation. Galvanized coatings and electrostatic treatments on fastening valves prevent corrosion that could compromise structural integrity. Hydraulic rods manufactured from 304 stainless steel with mirror-finish surfaces resist corrosion from moisture exposure. Ethernet connectivity enables remote monitoring and automated alerts when parameters deviate from specifications, ensuring test validity and operational safety.

Standards for Marine Equipment Waterproof Testing

International Electrotechnical Commission (IEC) Guidelines

IEC 60529 establishes the globally recognized Ingress Protection (IP) rating system defining protection levels against solid particles and water intrusion. Marine equipment typically requires IP67 (temporary immersion up to 1 meter) or IP68 (continuous immersion under manufacturer-specified conditions). Testing protocols specify immersion depth, duration, and water temperature ranges. A water immersion tank meeting IEC specifications includes calibrated depth control, precise timing mechanisms, and documented water quality parameters. Certification bodies require traceable calibration certificates and validated test procedures for official IP rating attestation.

Military and Defense Specifications

Defense applications demand waterproofing standards exceeding commercial requirements due to mission-critical reliability needs. MIL-STD-810 Method 512 specifies immersion procedures for military equipment, including preparation, conditioning, and post-test verification protocols. Naval applications reference additional specifications addressing saltwater exposure, shock during immersion, and operational functionality under submersion. Military-grade testing chambers incorporate features supporting these stringent requirements, including rapid pressurization capabilities, extended depth simulation, and integrated functional testing interfaces.

Classification Society and Maritime Industry Standards

Table 2: Common Marine Equipment Testing Standards

Classification societies like Lloyd's Register, DNV-GL, and American Bureau of Shipping establish standards governing equipment installed on certified vessels. These standards address not only initial waterproof integrity but also maintained performance throughout service life. Testing documentation becomes part of vessel certification packages, requiring traceable calibration, witnessed testing, and certified test reports. Manufacturers serving maritime markets must maintain testing capabilities aligned with multiple classification society requirements.

Custom Testing Solutions for Large and Complex Equipment

Scalability for Oversized Marine Components

Standard water immersion tanks accommodate most electronics and sensors, but specialized marine equipment often exceeds typical chamber dimensions. Submersible pumps, large sensor arrays, autonomous underwater vehicles, and hull-mounted systems require custom-sized testing solutions. The cylindrical design of industrial immersion tanks allows diameter and height customization while maintaining structural integrity under pressure. Tripod support systems distribute load safely for tanks exceeding standard footprints. Manufacturers should specify internal dimensions matching their largest anticipated test specimens with adequate clearance for mounting fixtures and cable routing.

Multi-Specimen Testing and Throughput Optimization

Production environments benefit from immersion tanks designed for simultaneous testing of multiple units. Internal rack systems position specimens at consistent depths while maintaining adequate spacing for water circulation. Programmable controllers coordinate complex test sequences cycling different specimens through varied protocols within the same chamber. This approach maximizes capital equipment utilization and accelerates testing throughput. Quality control departments testing incoming components or validating production batches particularly benefit from multi-specimen configurations that maintain individual test integrity while sharing infrastructure.

Integration with Functional Test Equipment

Comprehensive validation requires maintaining electrical connections and sensor interfaces during immersion testing. Penetration fittings in tank lids accommodate cables, pneumatic lines, and fiber optics while maintaining chamber integrity. External instrumentation monitors electrical parameters, measures sensor outputs, and logs functional data throughout immersion cycles. This integrated approach verifies not just waterproof integrity but continued operational capability under environmental stress. Advanced test protocols might include communication protocol validation, power consumption measurement, or sensor accuracy verification while equipment remains submerged at pressure.

LIB Industry Heavy-Duty Immersion Tanks for Marine Environment Testing

Robust Construction for Demanding Applications

LIB Industry specializes in manufacturing industrial-grade water immersion tanks engineered specifically for rigorous marine equipment validation. The R78-600 model exemplifies robust construction principles with A3 steel plate fabrication and 15mm wall thickness providing exceptional pressure resistance and longevity. Overall dimensions of 800mm diameter by 1800mm height accommodate substantial marine components while maintaining laboratory footprint efficiency. The pneumatic lid opening mechanism ensures safe access and reliable sealing across thousands of test cycles. Galvanized coatings and electrostatic treatments deliver corrosion resistance matching the harsh environments being simulated.

Advanced Control Systems and Connectivity

Table 3: R78-600 Water Immersion Tank Specifications

Modern marine testing demands sophisticated control and documentation capabilities. LIB Industry equips immersion tanks with PID programmable color touchscreen controllers offering intuitive operation and complex protocol development. The ability to create 120 distinct programs with 100 segments each enables simulation of elaborate mission profiles including multi-depth excursions, thermal cycling, and extended duration holds. Ethernet connectivity facilitates integration with laboratory information management systems, enabling automated data logging, remote monitoring, and centralized test documentation that supports quality management system requirements.

Turnkey Solutions and Technical Support

LIB Industry provides comprehensive turnkey solutions extending beyond equipment supply to include installation, commissioning, operator training, and ongoing technical support. Experienced applications engineers collaborate with customers to optimize chamber configurations for specific testing requirements, recommending accessories, fixture designs, and protocol development. Global service capabilities ensure responsive support regardless of installation location. This partnership approach helps manufacturers establish reliable, efficient testing operations that deliver consistent, defensible validation data throughout the product lifecycle - from initial design verification through ongoing production quality control.

Conclusion

Water immersion tank testing represents an essential validation step for marine equipment manufacturers committed to delivering reliable, waterproof products capable of withstanding harsh oceanic environments. From preventing catastrophic failures and ensuring regulatory compliance to enabling early design optimization, controlled immersion testing provides irreplaceable insights that field deployment cannot safely or economically deliver. By investing in robust testing infrastructure equipped with pressure simulation, environmental control, and advanced monitoring capabilities, manufacturers protect their reputations, satisfy demanding customers, and contribute to maritime safety across commercial, defense, and research applications.

FAQ

What depth pressure capability is required for testing marine electronics used in recreational vessels?

Most recreational marine electronics operate near the surface or at shallow depths, requiring immersion tanks capable of simulating 10-25 meters. A water immersion tank rated for 50-meter depth pressure provides substantial margin for these applications while accommodating occasional deeper-rated specialty equipment without requiring multiple chambers.

How long should immersion testing continue to adequately validate seal integrity?

Testing duration depends on application requirements and relevant standards, but marine equipment typically undergoes minimum 30-minute immersion at rated depth per IEC 60529. Extended protocols of 24-72 hours reveal progressive failures and time-dependent degradation mechanisms. Mission-critical applications benefit from week-long immersion cycles replicating extended deployment scenarios.

Can the same immersion tank test both freshwater and saltwater applications?

Modern immersion tanks accommodate both environments through water system configuration changes. Freshwater testing uses standard municipal or purified water, while marine testing requires saline solution preparation matching oceanic salinity levels. Thorough flushing between test types prevents cross-contamination. Stainless steel internal surfaces resist corrosion from saltwater exposure during marine testing protocols.

Ready to enhance your marine equipment validation capabilities? LIB Industry, a leading water immersion tank manufacturer and supplier, delivers turnkey environmental testing solutions tailored to your specific requirements. Contact our technical team at ellen@lib-industry.com to discuss your marine testing needs and discover how our expertise can elevate your product reliability.

Understanding the standards governing cyclic corrosion testing is fundamental for manufacturers seeking to validate material performance, ensure product longevity, and meet stringent industry requirements. A cyclic corrosion chamber must operate according to internationally recognized protocols that define precise environmental conditions, exposure sequences, and evaluation criteria. ASTM and ISO standards provide the authoritative framework for conducting reproducible, defensible corrosion tests that accurately predict real-world performance. These standards specify everything from salt solution chemistry and deposition rates to temperature cycling parameters and humidity transitions. Manufacturers relying on compliant testing equipment gain access to global markets, satisfy customer specifications, and build confidence in their corrosion resistance claims through scientifically validated methodologies recognized across automotive, aerospace, construction, and electronics industries.

What ASTM and ISO Standards Apply to Cyclic Corrosion Testing?

ASTM G85: The Foundation for Cyclic Exposure Testing

ASTM G85 stands as the primary standard governing modified salt spray testing methodologies that extend beyond traditional continuous fog exposure. This comprehensive specification defines multiple test practices (Annexes) addressing different corrosive environments and cycling protocols. Annex A3 establishes the MASTMAASIS test involving sulfur dioxide injection, while Annex A5 details the Prohesion test combining salt solution with controlled temperature and humidity cycling. Each annex prescribes specific solution chemistries, exposure durations, temperature setpoints, and transition requirements.

ISO 14993 and ISO 11997: European Perspectives

ISO 14993 addresses corrosion testing specifically for passenger vehicles, establishing test severity levels and performance criteria aligned with European automotive requirements. This standard emphasizes realistic exposure conditions replicating the combined effects of road salt, industrial pollutants, and atmospheric moisture. ISO 11997 focuses on paints and varnishes, defining cyclic corrosion test methods for protective coatings. Both standards require precise control of temperature transitions, humidity cycling, and salt fog deposition.

Industry-Specific Standards and OEM Requirements

Automotive original equipment manufacturers have developed proprietary corrosion testing standards tailored to their specific performance requirements and warranty commitments. GMW 14872 from General Motors, VW PV 1210 from Volkswagen Group, and SAE J2334 from the Society of Automotive Engineers each prescribe unique cycling sequences, exposure conditions, and acceptance criteria. Advanced corrosion testing chambers come pre-programmed with these major automotive standards, eliminating manual programming errors and ensuring exact compliance.

Overview of Common Corrosion Testing Standards

Traditional Salt Spray Methods: NSS, AASS, and CASS

Table 1: Comparison of Traditional Salt Spray Testing Methods

These traditional continuous exposure methods established the foundation for corrosion testing but present limitations in replicating real-world conditions. Materials experience intermittent wetting and drying in actual service, creating different corrosion mechanisms than continuous fog exposure produces.

Prohesion Testing According to ASTM G85-A5

The Prohesion test represents one of the most widely adopted cyclic corrosion protocols, particularly within automotive and coatings industries. This method alternates between dilute salt solution spray at 25°C (lasting 1 hour) and ambient drying at 35°C and 100% relative humidity (lasting 1 hour). The 2-hour complete cycle repeats continuously for test durations ranging from 240 to 2,880 hours depending on material type and performance requirements.

MASTMAASIS Testing With SO₂ Gas Injection

ASTM G85-A3 defines the MASTMAASIS protocol incorporating sulfur dioxide gas to simulate industrial atmospheric pollution effects. The test cycle includes salt spray exposure, ambient storage, SO₂ injection periods, and controlled humidity conditioning. This complex sequence requires sophisticated chamber capabilities including precision gas metering systems, sealed cyclic corrosion chamber construction preventing SO₂ leakage, and dedicated exhaust neutralization equipment.

Test Procedures and Cycle Definitions in ASTM and ISO

Environmental Conditioning Sequences and Timing

Cyclic corrosion testing derives its predictive power from carefully orchestrated sequences alternating between aggressive exposure and recovery periods. A typical automotive cycle might include 6 hours of salt spray at 35°C, followed by 2 hours of ambient drying at 60°C and 30% RH, then 16 hours of humid conditioning at 50°C and 95% RH. Chamber controllers must execute these sequences with precision timing and accurate environmental transitions.

Temperature and Humidity Transition Requirements

Standards specify maximum allowable transition times between environmental conditions to ensure test reproducibility and relevance. Rapid transitions from saturated salt fog conditions at near 100% RH to dry environments at 30% RH present significant technical challenges. A cyclic corrosion chamber must incorporate forced air circulation, mechanical refrigeration, and precision dehumidification to achieve these demanding transitions. Temperature control systems maintain setpoints within ±0.5°C while humidity accuracy reaches ±2% RH.

Solution Chemistry and Deposition Rate Control

Precise solution preparation requires demineralized or distilled water, reagent-grade chemicals, and careful pH adjustment without contaminating additives. Atomizer nozzles generate fine fog droplets that settle uniformly across the test chamber, achieving specified deposition rates of 1-2 mL/80cm²·h measured using calibrated collection funnels. Quartz glass spray nozzles resist high temperatures and corrosive solutions while maintaining consistent spray patterns through thousands of hours of operation.

How to Ensure Compliance With International Standards?

Chamber Qualification and Initial Verification

New corrosion testing equipment requires comprehensive qualification demonstrating compliance with applicable standards before beginning production testing. Qualification protocols verify temperature uniformity throughout the chamber volume, humidity accuracy at multiple setpoints, and salt deposition uniformity across specimen locations. Technicians position calibrated sensors and collection funnels at specified chamber locations, document environmental conditions over multiple test cycles, and compare results against standard requirements.

Ongoing Performance Monitoring and Trending

Standards compliance extends beyond initial qualification to encompass continuous performance monitoring throughout the chamber's service life. Regular verification activities include weekly salt deposition rate measurements, monthly temperature and humidity calibration checks, and quarterly solution pH verification. Cyclic corrosion chambers equipped with Ethernet connectivity and data logging capabilities facilitate automated performance monitoring, generating alerts when parameters approach specification limits.

Personnel Training and Procedure Standardization

Equipment capabilities alone cannot ensure standards compliance—trained personnel executing validated procedures are equally critical. Comprehensive training programs cover solution preparation techniques, specimen preparation and mounting, chamber operation and programming, data collection protocols, and troubleshooting procedures. Written standard operating procedures document each process step, reducing variability between operators and shifts.

Calibration and Validation of Corrosion Test Chambers

Temperature Sensor Calibration and Verification

Accurate temperature control depends on properly calibrated sensors and validated measurement systems. Platinum resistance thermometers (PT100 Class A) offer exceptional accuracy and long-term stability in corrosive environments, but require regular calibration against traceable standards. Calibration procedures compare chamber sensor readings against reference thermometers at multiple temperatures spanning the operating range. The saturated air barrel preheating system in advanced chambers maintains consistent inlet air temperature.

Humidity Measurement System Validation

Relative humidity sensors face particular challenges in corrosive salt fog environments that can degrade sensor elements and compromise accuracy. Capacitive humidity sensors with protective coatings resist salt contamination while maintaining measurement precision across the 30-98% RH range required for cyclic testing. External isolation of the stainless steel surface evaporation humidifier prevents salt contamination of humidity generation systems.

Salt Deposition Rate Verification Procedures

Standards specify salt deposition rates in terms of solution volume collected per unit area per hour. Verification employs standardized collection funnels positioned at specified chamber locations, capturing spray over measured time periods. Laboratory balances determine collected solution mass, converted to volume using known density values. The atomizer tower and spray nozzle system design significantly influences deposition uniformity.

Documentation and Reporting for Certification Processes

Test Plan Development and Approval

Comprehensive test planning precedes actual testing, documenting objectives, applicable standards, specimen descriptions, exposure conditions, evaluation criteria, and acceptance requirements. Test plans reference specific standard versions to ensure clarity regarding protocol details. Customer review and approval of test plans confirms mutual understanding of testing scope and deliverables.

Real-Time Data Logging and Archiving

Table 2: Essential Documentation for Standards-Compliant Testing

Modern cyclic corrosion chambers generate continuous environmental data streams documenting temperature, humidity, and cycle progression throughout multi-week test durations. Programmable controllers with Ethernet connectivity enable remote monitoring and automated data logging to network servers.

Certification and Audit Trail Requirements

Laboratory accreditation under ISO/IEC 17025 requires rigorous documentation systems demonstrating measurement traceability, competence, and quality management. Accredited laboratories undergo regular assessments by external auditors who scrutinize calibration records, training documentation, test procedures, and result reporting practices.

LIB Industry Compliant Corrosion Chambers Meeting ASTM and ISO Standards

Model	SC-010	SC-016	SC-020
Internal dimensions (mm)	1300*1000*600	1600*900*720	2000*1000*800
Overall dimensions (mm)	2000*1300*1600	2300*1300*1700	2700*1300*1900
Interior Volume (L)	780	1280	1800
Temperature Range	+10 ℃ ～ +90 ℃
Humidity Range	30% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Cooling system	Mechanical compression refrigeration system
Water supply system	Water purification system
Air Preheating	Saturated air barrel (31Liter)
Spraying System	Atomizer tower and Spray nozzles
Salt Fog Collected	Fog collector and fog measure cylinder
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material	Glass fiber reinforced plastics
Standard Configuration	8 round bars

Engineered for Multi-Standard Versatility

LIB Industry manufactures cyclic corrosion chambers specifically designed to accommodate the full spectrum of ASTM and ISO testing protocols within a single versatile platform. The SC series (models SC-010, SC-016, and SC-020) offers internal volumes from 780 to 1,800 liters, accommodating small components through large assemblies. Temperature control spanning +10°C to +90°C with ±0.5°C stability supports protocols from ambient Prohesion testing through elevated-temperature accelerated exposures.

Built-In Standard Library and Custom Programming

Recognizing the complexity of programming multi-step cyclic exposure protocols, LIB Industry pre-loads controller software with complete test sequences for major automotive and aerospace standards. VW PV 1210, GMW 14872, SAE J2334, and other commonly referenced specifications are available through simple menu selection. The programmable color LCD touchscreen controller supports up to 120 custom programs with 100 segments each.

Precision Environmental Control and Fast Transitions

The mechanical compression refrigeration system with air-cooled condenser delivers rapid cooling performance essential for quick transitions from high-temperature exposure to ambient conditions. Glass fiber reinforced plastic construction resists thermal expansion through countless temperature cycles while providing excellent corrosion resistance. The dedicated NaOH tank exhaust neutralization system safely processes SO₂ gas after testing completion, maintaining workplace air quality.

Conclusion

Navigating the complex landscape of cyclic corrosion testing standards requires both comprehensive technical knowledge and access to properly equipped, calibrated testing chambers. ASTM and ISO specifications provide the scientific framework ensuring reproducible, defensible test results that accurately predict material performance across diverse industries. Compliance demands attention to solution chemistry, environmental cycling sequences, calibration protocols, and meticulous documentation practices. Manufacturers investing in standards-compliant corrosion testing capabilities gain competitive advantages through validated product claims and reduced warranty risks.

FAQ

What is the difference between ASTM B117 and ASTM G85 cyclic corrosion testing?

ASTM B117 specifies continuous neutral salt spray exposure at constant temperature, while ASTM G85 encompasses multiple cyclic test methods alternating between salt spray, dry periods, humid conditioning, and ambient recovery. Cyclic protocols better replicate real-world environmental exposure patterns, providing more accurate performance predictions than continuous fog alone.

How often should cyclic corrosion chambers undergo calibration to maintain standards compliance?

Temperature and humidity sensors require verification quarterly at minimum, with annual formal calibration against traceable standards. Salt deposition rates should be verified weekly during active testing periods. Chamber qualification mapping should be repeated annually or after significant maintenance activities to ensure ongoing measurement accuracy and standards compliance.

Can a single chamber accommodate both ASTM and ISO testing requirements?

Modern cyclic corrosion chambers designed with appropriate temperature range, humidity control, and programmable cycling capabilities can execute both ASTM and ISO protocols. The key requirement involves precise environmental control across specified ranges and programmable sequencing flexibility. Chamber selection should verify specifications envelope all intended standards' environmental condition requirements.

LIB Industry stands ready to support your corrosion testing requirements with advanced cyclic corrosion chambers meeting international ASTM and ISO standards. As a leading environmental test chamber manufacturer and supplier with global service capabilities, we deliver turnkey solutions tailored to your specific testing needs. Contact our technical specialists at ellen@lib-industry.com today.

Understanding IEC 60529 proves essential when selecting and operating dust testing equipment that validates product ingress protection ratings. This international standard establishes systematic methodologies for evaluating enclosure effectiveness against solid particle intrusion, including dust and fine particulates. A properly configured dust simulation chamber replicates precise environmental conditions - controlled talcum powder concentration, specific pressure differentials, and standardized exposure durations - ensuring your products achieve genuine IP5X and IP6X certifications recognized globally. This comprehensive guide decodes the standard's technical requirements, test protocols, and compliance verification procedures that transform laboratory testing into marketplace confidence.

What Is IEC 60529 and Its Role in Dust Testing?

Historical Development and Global Adoption

The International Electrotechnical Commission published IEC 60529 to create unified protection classification criteria applicable across industries and geographic markets. Before this standardization, manufacturers faced conflicting regional testing requirements that complicated international trade. The standard's development involved collaboration among engineers, regulatory authorities, and industry representatives who established scientifically validated test methods. Today, certification bodies worldwide reference IEC 60529 as the authoritative framework for ingress protection verification.

Scope and Application Across Industries

This standard applies to electrical enclosures rated for voltage not exceeding 72.5kV, though many industries extend its principles beyond electrical equipment. Automotive manufacturers test headlamp assemblies, control modules, and sensor housings using these protocols. Consumer electronics companies validate smartphones, tablets, and wearables against dust ingress. Industrial equipment suppliers certify machinery controls, instrumentation, and outdoor installations. The universal applicability makes IEC 60529 knowledge indispensable for quality assurance professionals across sectors.

Relationship to Other International Standards

While IEC 60529 provides the foundation, complementary standards address specific application domains. ISO 20653 extends these principles to road vehicles, incorporating additional environmental factors relevant to automotive applications. MIL-STD-810 references similar dust testing methodologies for military equipment under harsh operational conditions. Understanding how these standards interconnect helps manufacturers select appropriate testing protocols matching their product's intended environment and regulatory landscape.

IP Code Structure and Dust Protection Levels

Decoding the Two-Digit Classification System

The IP code follows a standardized format: "IP" followed by two characteristic numerals. The second digit - ranging from 0 to 6 - quantifies protection against solid object intrusion. Lower values indicate resistance against larger particles, while higher values demonstrate protection against progressively smaller particles. An "X" placeholder appears when manufacturers haven't tested or don't claim protection for that characteristic. This systematic approach enables precise specification of enclosure capabilities without ambiguous marketing terminology.

IP5X: Dust Protected Classification

IP5X certification indicates the enclosure prevents dust accumulation that would interfere with equipment operation. Limited dust ingress may occur, but quantities remain insufficient to compromise functionality or safety. Testing involves suspending the specimen inside a dust simulation chamber containing talcum powder with standardized particle characteristics - 50μm wire diameter and 75μm nominal gap width between wires. The chamber maintains continuous dust circulation for eight hours while operators monitor the specimen's operational status.

IP6X: Complete Dust Tight Protection

The highest solid particle protection level, IP6X certification guarantees absolute prevention of dust penetration. No visible deposits appear inside the enclosure following testing, demonstrating complete sealing effectiveness. Achieving this rating requires maintaining a 2kPa pressure differential - the enclosure interior under vacuum relative to the dust-laden chamber atmosphere. This negative pressure attempts to draw dust through any potential ingress paths, simulating worst-case environmental exposure. Products requiring IP6X protection typically operate in mining environments, pharmaceutical manufacturing, or other dust-intensive applications.

Additional Letters and Supplementary Information

Beyond the two primary digits, IEC 60529 permits additional letters providing supplementary information. Letter "H" indicates suitability for high-voltage apparatus, while "M" confirms the equipment remained operational during water testing. "S" denotes the specimen stayed stationary during evaluation, and "W" specifies weather-resistant construction. These supplementary designations offer nuanced specification capabilities beyond the basic two-digit code, enabling precise communication of protection characteristics relevant to specialized applications.

Test Procedures for IP5X and IP6X Compliance

Specimen Preparation and Pre-Test Inspection

Proper preparation determines test validity and result accuracy. Clean the specimen thoroughly, removing manufacturing residues, protective films, and contamination that might interfere with dust detection. Document the specimen's condition through detailed photography capturing seam locations, ventilation openings, and potential ingress pathways. Verify all closures, gaskets, and sealing mechanisms function correctly according to manufacturer specifications. This baseline documentation enables accurate post-test evaluation of dust penetration patterns.

Chamber Configuration and Dust Characteristics

The talcum powder used in testing must meet specific physical characteristics ensuring repeatability across different laboratories. Particle size distribution, moisture content, and flowability affect test severity and result consistency. The 75μm mesh filtration system maintains proper particle sizing throughout testing cycles. Operators must verify talcum powder remains dry - humidity levels below 30% RH prevent clumping that invalidates results. Chamber temperature between ambient and 50°C simulates realistic operational conditions without introducing thermal expansion variables.

Execution of IP5X Testing Protocol

Position the specimen within the chamber's working volume where dust circulation achieves uniform concentration. The vertical dust circulation system ensures consistent particle suspension throughout the 800L to 2000L chamber volume. Activate circulation for eight continuous hours, maintaining steady dust concentration visible through the double-layer observation window. The programmable touchscreen controller automates timing and circulation parameters, eliminating operator error. Interior lighting allows real-time monitoring without disturbing test conditions, though opening the chamber during active testing invalidates the run.

IP6X Vacuum Testing Requirements

IP6X testing introduces additional complexity through the 2kPa pressure differential requirement. Connect the specimen to the integrated vacuum system through dust-proof cable ports that maintain chamber integrity while allowing powered operation testing. The pressure gauge confirms proper vacuum levels throughout the eight-hour exposure duration. Automated pressure regulation compensates for minor leaks in the specimen or test setup, maintaining consistent conditions. This vacuum challenge represents extreme exposure conditions rarely encountered in normal operation, providing substantial safety margins for certified products.

Post-Test Evaluation Criteria

Carefully remove the specimen from the dust simulation chamber, avoiding external contamination that might compromise evaluation accuracy. Disassemble the enclosure following manufacturer procedures, documenting dust presence at each step. IP5X evaluation permits limited dust ingress provided functionality remains unaffected - no accumulation on electrical contacts, circuit boards, or mechanical components that would impair operation. IP6X certification requires absolute absence of dust deposits anywhere within the enclosure interior. Photographic documentation supports certification applications and provides valuable feedback for design improvements.

How to Ensure Accurate and Compliant Testing Conditions?

Environmental Control and Monitoring

Ambient laboratory conditions influence dust behavior and test reproducibility. Temperature stability prevents convection currents that create non-uniform dust distribution. Humidity control below 30% RH maintains talcum powder flowability and prevents moisture absorption that causes particle agglomeration. The advanced dust circulation technology in professional chambers includes heated circulation chambers that actively dry recirculating dust, compensating for environmental humidity. Real-time monitoring displays environmental parameters alongside test progress, alerting operators to deviations requiring correction.

Dust Quality Verification

Not all talcum powder meets testing requirements. Particle size analysis using laser diffraction or sieve analysis confirms compliance with the 50μm wire diameter and 75μm gap width specifications. Chemical composition verification ensures absence of contaminants affecting electrical conductivity or corrosivity. Fresh talcum powder performs differently than material recycled through multiple test cycles - particle attrition creates finer dust that may yield non-representative results. Establish replacement schedules based on usage intensity rather than arbitrary time intervals.

Chamber Integrity and Leak Testing

Even minor leaks in the test chamber compromise result validity by allowing dust escape that reduces internal concentration. The multi-layer door sealing system requires periodic inspection for wear, damage, or compression set in sealing materials. Conduct periodic leak tests using smoke or tracer particles to visualize potential escape pathways. The electromagnetic door lock prevents accidental opening during testing, but operators must verify proper engagement before initiating test sequences. Sloped bottom chamber design with quick-release drainage facilitates complete dust removal between tests, preventing cross-contamination.

Calibration and Verification Requirements

Establishing Traceable Measurement Standards

Accurate pressure differential measurement proves critical for IP6X testing validity. Calibrate pressure gauges against certified reference standards traceable to national metrology institutes. The integrated vacuum system's pressure regulator requires verification that actual delivered pressure matches displayed values across the operating range. Temperature and humidity sensors need periodic calibration ensuring environmental monitoring accuracy. Documentation demonstrating measurement traceability satisfies accreditation requirements and supports certification body acceptance of test results.

Periodic Performance Verification

Beyond individual instrument calibration, verify overall system performance using reference specimens with known characteristics. Test enclosures with documented dust ingress behavior provide objective performance benchmarks. Consistent results confirm the dust simulation chamber maintains proper operating conditions. Unexpected variations indicate degradation requiring investigation - fan wear reducing circulation effectiveness, seal deterioration allowing dust escape, or moisture intrusion affecting powder characteristics. The wear-resistant fan design and strategic component positioning minimize degradation, but systematic verification detects problems before they compromise test validity.

Documentation and Record Keeping

Comprehensive calibration records demonstrate ongoing measurement capability and support quality management system requirements. Document calibration dates, reference standards used, measured values, and corrective actions taken. The Ethernet-connected controller's automated data logging simplifies record generation by capturing test parameters, environmental conditions, and timing information. Multi-language support accommodates international teams while remote access capabilities enable supervisory review of testing activities across distributed laboratory networks. USB data download provides convenient transfer to laboratory information management systems.

Documentation and Certification for Compliance Audits

Required Test Reports and Content

Certification bodies require detailed test reports documenting every aspect of the evaluation process. Reports must identify the tested specimen through part numbers, serial numbers, and detailed descriptions including photographs. Environmental conditions during testing - temperature, humidity, atmospheric pressure - appear alongside chamber identification and calibration status. Test procedure narrative describes specimen preparation, chamber configuration, exposure duration, and evaluation methodology. Results sections present objective findings supported by photographic evidence of post-test specimen condition. Clear pass/fail determinations reference specific standard requirements.

Photographic Evidence Standards

Visual documentation provides compelling evidence of test conditions and results that textual descriptions cannot convey. Pre-test photographs establish baseline specimen condition while post-test images demonstrate dust ingress extent or absence. Interior views showing gasket placement, seal condition, and closure mechanisms help evaluators understand protection strategies. Close-up detail photography reveals subtle ingress patterns informing design refinement. Consistent lighting, background, and positioning enable direct comparison across multiple test iterations or product variants. Digital photography with embedded metadata preserves timing and sequence information valuable during audit reviews.

Certification Body Submission Requirements

Different certification organizations maintain specific submission format preferences and required documentation elements. Understanding these requirements before testing prevents delays from incomplete applications. Some bodies accept electronic submissions while others require physical test reports with original signatures. Turnaround expectations vary significantly - expedited certification options exist for time-sensitive product launches. The comprehensive safety systems monitoring electrical current, temperature, phase balance, and ground fault conditions generate automated safety compliance documentation supporting broader product certification efforts beyond just ingress protection ratings.

LIB Industry IEC 60529-Compliant Dust Chambers for Reliable Certification

One-Touch Standard Compliance

Navigating complex standard requirements challenges even experienced testing professionals. LIB dust simulation chambers eliminate guesswork through integrated one-touch presets programmed for IEC 60529 IP5X and IP6X protocols. These presets automatically configure circulation duration, pressure differential, and monitoring parameters matching standard specifications. Operators simply select the appropriate IP level and initiate testing - the system handles technical details ensuring compliant conditions. This automation reduces operator training requirements while eliminating setup errors that waste time and materials.

Multi-Stage Circulation Technology

The vertical dust circulation system represents significant engineering advancement over conventional horizontal flow designs. Strategic airflow patterns prevent the common problem of dust settling in chamber corners or accumulating on internal surfaces. This uniform distribution ensures specimens experience consistent exposure regardless of position within the working volume. The 75μm mesh filtration continuously removes oversized particles or agglomerates that might cause non-representative test conditions. Combined with heated circulation chambers maintaining optimal dust dryness, this technology delivers repeatable results matching interlaboratory comparison studies.

Heavy-Duty Sample Accommodation

Testing large automotive assemblies, industrial equipment, or multiple specimens simultaneously requires robust sample support infrastructure. The reinforced stainless steel rack system safely supports substantial loads - the DI-2000 model accommodates specimens up to 1000mm tall within its 2000L working volume. Specialized cable ports with dust-proof sealing enable powered operation testing without compromising chamber integrity. The 16A dust-proof socket delivers adequate power for demanding electronic loads while maintaining complete dust containment. This capability allows simultaneous functional testing during dust exposure, revealing failures that static testing might miss.

Global Support Infrastructure

Since 2009, LIB Industry has delivered environmental testing solutions to industry leaders including Apple, Intel, Mercedes-Benz, and BYD across 60+ countries. This extensive deployment experience informs continuous product improvement and application engineering support. When certification challenges arise - unusual specimen configurations, non-standard testing protocols, or interpretation questions - LIB's technical team provides practical guidance based on real-world experience. The comprehensive 3-year warranty with lifetime service support protects your testing investment while ensuring ongoing compliance capability as standards evolve.

Customization for Specialized Requirements

Standard chamber configurations serve most applications effectively, but unique testing demands sometimes require tailored solutions. LIB's experienced R&D team develops custom modifications addressing specific challenges - oversized chambers for large equipment, specialized sample fixtures maintaining unusual orientations, or integrated data acquisition systems capturing operational parameters during exposure. Custom testing software interfaces with existing laboratory information systems, streamlining workflow integration. These customization capabilities extend to complete turnkey laboratory installations where LIB provides coordinated dust testing, water ingress evaluation, and temperature cycling equipment configured for seamless operation.

Conclusion

Mastering IEC 60529 requirements transforms dust testing from compliance obligation into competitive advantage. The standard's systematic approach to ingress protection classification provides clear communication of product capabilities while its rigorous test protocols ensure certified products genuinely withstand challenging environmental conditions. Investing in proper dust simulation chambers, understanding detailed test procedures, maintaining calibration integrity, and documenting results thoroughly positions your organization for certification success and marketplace confidence.

FAQ

What distinguishes IP5X from IP6X testing beyond dust quantity measurements?

The fundamental difference lies in pressure differential application. IP5X testing occurs at atmospheric pressure with acceptance criteria permitting limited non-interfering dust ingress. IP6X requires 2kPa vacuum inside the specimen throughout eight-hour exposure, demanding absolute zero dust penetration. This pressure challenge simulates extreme conditions providing substantial protection margins.

Can I use the same talcum powder indefinitely through multiple test cycles?

Repeated circulation causes particle attrition generating progressively finer dust that may produce non-representative results. Monitor particle size distribution periodically and replace powder when measurements deviate significantly from specifications. Usage intensity determines replacement frequency - high-volume laboratories may require monthly replacement, while occasional users achieve longer intervals.

How do certification bodies verify my testing equipment meets IEC 60529 requirements?

Auditors examine calibration records demonstrating measurement traceability, review chamber design confirming proper dust circulation and pressure control, and may request reference specimen testing comparing your results against known standards. Maintaining comprehensive documentation of equipment specifications, calibration history, and performance verification studies facilitates smooth audit processes.

Partner with a Leading Dust Simulation Chamber Manufacturer

LIB Industry delivers precision-engineered dust testing solutions as a trusted dust simulation chamber manufacturer and supplier. Our factory-certified equipment and expert technical support ensure your certification success. Contact our team at ellen@lib-industry.com to discuss how our IEC 60529-compliant chambers meet your specific testing requirements.

Achieving accurate IP rating verification demands precise spray pattern calibration in your water ingress test chamber. Proper calibration ensures consistent water distribution, uniform pressure delivery, and reliable test results that comply with international standards like IEC 60529 and ISO 20653. This comprehensive guide explores proven calibration techniques, essential parameters to monitor, verification procedures, and maintenance protocols that guarantee your testing equipment performs at peak accuracy. Whether you're validating automotive components, electronics, or outdoor equipment, mastering these calibration practices protects product quality and strengthens certification confidence.

Why Is Spray Pattern Calibration Critical in Water Ingress Testing?

Ensuring Compliance with International Standards

Regulatory bodies mandate specific water delivery characteristics for each IPX level. The IEC 60529 standard defines precise flow rates, spray angles, and duration requirements that your chamber must replicate. Miscalibrated spray patterns produce invalid test results, potentially leading to product failures in real-world conditions or rejected certifications. Your calibration procedures directly impact whether tested products genuinely meet their designated protection ratings.

Preventing False Pass/Fail Results

Inconsistent water distribution creates testing blind spots where insufficient coverage might allow defective products to pass. Conversely, excessive water concentration in specific areas can cause quality products to fail unnecessarily. These discrepancies waste resources through retesting cycles and damage your laboratory's credibility. Proper calibration eliminates these variables, delivering reproducible results across multiple test runs.

Protecting Investment in Testing Infrastructure

Environmental testing equipment represents substantial capital investment. Poorly calibrated systems experience accelerated component wear, nozzle blockages, and pump degradation. Regular calibration identifies performance drift before it causes equipment damage, extending operational lifespan. The RD-800C model's precision water control system benefits significantly from systematic calibration protocols that preserve its advanced features.

Key Parameters: Flow Rate, Pressure, and Nozzle Positioning

Understanding Flow Rate Requirements Across IPX Levels

Different protection levels demand distinct water volumes. IPX1 testing requires 1mm rainfall per minute, while IPX5 specifications call for 12.5 liters per minute at specific nozzle distances. Your digital flow measurement system must accurately deliver these volumes consistently throughout testing cycles. Calibration involves measuring actual output against specified requirements using certified flow meters positioned at various chamber locations.

Maintaining Optimal Pressure Distribution

Water pressure directly influences spray pattern geometry and droplet characteristics. The variable frequency pump control in advanced water ingress test chambers adjusts delivery pressure automatically, but calibration confirms actual output matches programmed values. Pressure gauges installed at multiple points - pump outlet, distribution manifold, and individual nozzles - reveal pressure losses that affect uniformity. Acceptable variation between measurement points should not exceed 8% of the nominal value.

Achieving Precise Nozzle Positioning and Alignment

Nozzle placement determines coverage uniformity across the test specimen. The oscillating tube's radius, swing angle, and rotation speed work together to create overlapping spray patterns. Calibration verifies that the φ0.4mm spraying holes maintain 50mm spacing without blockages. Laser alignment tools confirm the oscillating tube's centerline matches the turntable's rotation axis within 2mm tolerance, preventing asymmetric water distribution.

Calibration Methods for Uniform Water Distribution

Grid-Based Collection Testing

This foundational technique maps water distribution across the test area. Position collection containers in a grid pattern - typically 100mm spacing - across the drip tray. Run a standard test cycle and measure volume collected in each container. Uniform distribution shows less than 15% deviation between containers. Significant variations indicate nozzle blockages, misalignment, or pressure imbalances requiring correction.

Dynamic Pattern Visualization

Modern calibration employs thermal imaging or moisture-sensitive paper to visualize spray patterns during operation. The motorized sample turntable accommodates these diagnostic tools while maintaining normal rotation speeds. This real-time assessment reveals gaps in coverage, spray overlap zones, and the effectiveness of the 15-degree positioning for IPX2 drainage testing. Documentation through video recording provides baseline comparisons for future calibration sessions.

Computational Fluid Dynamics Validation

Advanced laboratories supplement physical testing with CFD simulations modeling water trajectory, droplet size distribution, and turbulence effects. These simulations predict how chamber geometry, airflow, and temperature influence spray behavior. Comparing simulation results against actual measurements identifies systematic errors in calibration procedures and guides optimization of nozzle configurations for the 600600 or 10001000 drip tray sizes.

How to Verify Spray Coverage and Test Consistency?

Establishing Baseline Performance Metrics

Document your chamber's performance characteristics under controlled conditions. Record flow rates, pressures, temperature, and resulting spray patterns when the system operates optimally. These baselines become reference standards for detecting calibration drift. The programmable color LCD touch screen controller stores these profiles, enabling automated comparison during routine verification procedures.

Implementing Reference Sample Testing

Designate calibration standards - samples with known water ingress characteristics - for periodic validation. Test these references quarterly using standardized procedures. Consistent results confirm your water ingress test chamber maintains calibration integrity. Unexpected variations signal calibration drift requiring investigation. Automotive manufacturers frequently use sealed control modules with pressure sensors as traceable reference standards.

Conducting Interlaboratory Comparison Studies

Participate in round-robin testing programs where multiple laboratories test identical samples. Comparing your results against peer facilities identifies systematic calibration biases invisible in isolated testing. These comparisons strengthen quality management systems and satisfy accreditation requirements. The closed-loop water management system's multi-stage filtration ensures water quality consistency that supports valid interlaboratory comparisons.

Standards and Guidelines for Calibration Procedures

IEC 60529 Calibration Requirements

This foundational standard specifies test apparatus characteristics, including nozzle dimensions, water quality parameters, and pressure tolerances. Section 14 details verification procedures ensuring compliance. Your calibration documentation must demonstrate traceability to national measurement standards through certified reference equipment. The standard mandates annual comprehensive calibration with quarterly verification checks between full calibrations.

ISO/IEC 17025 Laboratory Accreditation Criteria

Accredited testing laboratories follow rigorous calibration protocols documented in quality management systems. Calibration intervals depend on equipment stability, usage frequency, and manufacturer recommendations. The 500-liter stainless steel reservoir and automatic water level monitoring system require periodic capacity verification. Measurement uncertainty budgets account for instrument accuracy, environmental conditions, and operator technique.

Manufacturer-Specific Calibration Protocols

LIB Industry provides detailed calibration procedures tailored to each chamber model's unique features. The RD-800C's precision water control system includes factory-established calibration points verified during commissioning. Following these protocols maintains warranty coverage and ensures optimal performance. Manufacturer-certified calibration services guarantee compatibility with ongoing product development and standard updates.

Maintenance and Periodic Verification for Long-Term Accuracy

Daily Operational Checks

Before each testing session, operators should verify water level adequacy, inspect nozzles for visible blockages, and confirm spray pattern appearance through the double layer insulating glass observation window. The built-in dustproof LED lighting facilitates visual inspection of the SUS304 stainless steel chamber interior. These quick checks prevent testing invalid results from obvious equipment problems.

Weekly Maintenance Procedures

The multi-stage filtration system requires weekly inspection and cleaning to prevent nozzle blockages. Measure and record flow rates at standard pressure settings to detect gradual performance degradation. Check the oscillating tube's swing mechanism for smooth operation across the full ±180° range. Verify turntable rotation remains synchronized with programmed speeds. These routine tasks maintain the chamber between formal calibration events.

Quarterly Comprehensive Verification

Detailed verification every three months includes complete flow rate mapping across all IPX levels, pressure uniformity assessment at multiple measurement points, and nozzle alignment confirmation. Test the waterproof electrical feedthroughs for power-on testing capability integrity. Inspect the drip tray's evenly distributed holes for corrosion or damage. Document all measurements in calibration logs that demonstrate ongoing compliance with performance specifications.

LIB Industry Engineered Systems for Precise Spray Pattern Calibration and Control​​​​​​​

Name		Combined Waterproof Test Chamber
Dimension	Internal dimensions	900*950*950mm -D*W*H
	Overall dimensions	1180*1420*1920mm -D*W*H
	IPX5 IPX6 tube dimensions	Length is 2000mm, diameter is 325mm
IPX1 IPX2	Drip box	600*600mm
	Hole spacing	20mm
	Hole diameter	φ0.4mm
IPX3 IPX4	Oscillating tube radius	400mm
	Spraying hole diameter	φ0.4mm
	Hole spacing	50 mm
	Number of holes	25
	Oscillating tube range	0~ ±180°
	Swivel velocity speed of tubes	60°/seconds
IPX5 IPX6	Nozzle diameter	Dia6.3mm for IPX5 nozzle diameter, Dia12.5mm for IPX6 nozzle diameter
	Water flow rate	12.5L/min ±5% for IPX5 test, 100L/min ±5% for IPX6 test
	Core of the substantial stream	circle of approximately 40 mm diameter at 2,5 m distance from nozzle
Turntable	Diameter	600mm
	Height	350~600mm, adjustable
	rotation speed	1~5r/min

Advanced Digital Control Architecture

LIB water ingress test chambers incorporate intelligent automation that simplifies calibration procedures while enhancing accuracy. The Ethernet-connected controller enables remote monitoring and data logging for comprehensive performance tracking. Real-time displays show current flow rates, pressure readings, and test progress, allowing immediate detection of calibration deviations. Programmable test sequences ensure identical conditions across repeated calibration runs.

Precision-Engineered Water Delivery Components

The variable frequency pump control system maintains stable water delivery despite supply pressure fluctuations or temperature changes. Adjustable parameters accommodate testing requirements from gentle drip simulation to high-pressure jet spray. The oscillating tube's adjustable swing angle - from ±45° to ±180° - provides flexibility for different specimen configurations while maintaining calibration integrity. These premium components deliver consistent performance exceeding 10,000 test cycles.

Integrated Quality Assurance Features

Multiple safety devices protect calibration integrity through over-temperature protection, water shortage detection, and automatic system shutdown when parameters exceed acceptable ranges. The phase sequence protection and earth leakage protection prevent electrical faults during power-on testing that might affect calibration accuracy. These built-in safeguards reduce calibration drift from equipment malfunctions.

Global Service and Support Network

Since 2009, LIB Industry has delivered environmental testing solutions to industry leaders including Apple, Intel, Mercedes-Benz, and BYD across 60+ countries. This worldwide experience informs calibration best practices adapted to diverse regulatory environments and application requirements. The comprehensive 3-year warranty with lifetime service support includes calibration assistance, ensuring your investment maintains peak performance throughout its operational lifespan.

Customization Capabilities for Unique Requirements

The experienced R&D team develops tailored solutions for specialized testing needs that standard calibration procedures might not address. Whether you require modified chamber dimensions for oversized specimens, specialized test fixtures maintaining calibration during unusual orientations, or integrated data logging systems tracking calibration history, LIB engineers deliver precisely what your applications demand. This customization expertise extends to calibration methodologies for non-standard test protocols.

Conclusion

Mastering spray pattern calibration transforms your water ingress test chamber from simple equipment into a precision measurement instrument. The practices outlined - systematic parameter verification, standards-based procedures, proactive maintenance, and advanced control systems - ensure consistent, accurate results that withstand regulatory scrutiny. Calibration investment pays dividends through reduced retesting, extended equipment lifespan, and enhanced laboratory reputation. As testing requirements evolve and standards tighten, robust calibration protocols position your organization for continued success in demanding quality verification environments.

FAQ

How often should I perform complete spray pattern calibration on my water ingress test chamber?

Annual comprehensive calibration meets most regulatory requirements, with quarterly verification checks between full calibrations. High-volume laboratories testing critical components may benefit from semi-annual full calibrations. Usage intensity, test variability, and accreditation standards determine optimal calibration frequency for your specific operational context.

What causes spray pattern drift between calibration intervals?

Nozzle wear from particulate contamination, mineral deposits from water quality variations, and mechanical misalignment from vibration represent common drift sources. The multi-stage filtration system minimizes contamination, while quality construction reduces mechanical issues. Regular maintenance between calibration events prevents accelerated drift, maintaining accuracy throughout the calibration cycle.

Can I perform basic calibration verification internally without external certification?

Internal verification using calibrated reference instruments maintains awareness of chamber performance between certified calibrations. However, traceable certification from accredited calibration laboratories remains essential for regulatory compliance and quality management system requirements. Internal checks complement but cannot replace formal external calibration for critical applications requiring documented measurement traceability.

Partner with a Trusted Water Ingress Test Chamber Manufacturer

LIB Industry stands ready to support your calibration excellence as a leading water ingress test chamber manufacturer and supplier. Our factory-certified technicians provide comprehensive calibration services, training, and ongoing technical support. Contact us at ellen@lib-industry.com to discuss how our precision-engineered solutions meet your specific testing requirements.

Advanced cyclic corrosion testing conducted in a cyclic corrosion chamber represents a paradigm shift from traditional single-environment exposure methods, offering realistic simulation of protective coating performance under variable atmospheric conditions. Unlike conventional salt spray testing that maintains static conditions, cyclic methodologies alternate between salt fog exposure, dry periods, humid conditioning, and ambient recovery phases. This multi-phase approach accurately replicates real-world weathering patterns where coatings experience temperature fluctuations, moisture cycling, and intermittent corrosive exposure. The sophisticated testing protocols reveal coating vulnerabilities that static testing cannot detect, enabling manufacturers to develop superior protective systems for automotive, aerospace, marine, and industrial applications.

What Defines Advanced Cyclic Corrosion Testing Methods?

Multi-Environment Sequential Exposure Philosophy

Advanced cyclic testing transcends simple salt fog immersion by orchestrating carefully sequenced environmental transitions. A cyclic corrosion chamber alternates between corrosive salt spray phases at controlled deposition rates of 1-2 mL/80 cm²·h, followed by drying intervals where salt crystallization concentrates corrosive species on coating surfaces. Subsequent humid phases at 85-98% RH accelerate electrochemical reactions, while ambient recovery periods simulate nighttime or seasonal cooling. This cyclical pattern mimics coastal industrial environments where protective coatings endure the most aggressive degradation mechanisms.

International Standards Compliance Framework

Standardized test protocols ensure reproducibility and industry acceptance of coating performance data. ASTM G85 establishes cyclic corrosion test procedures including Annex A3 (SWAAT - Seawater Acidity Test), Annex A4 (SO2 test), and Annex A5 (Prohesion test). Automotive manufacturers reference VW PV 1210, GMW 14872, and SAE J2334 for OEM-specific qualification requirements. Aerospace applications follow Boeing and Airbus proprietary specifications. Modern chambers feature pre-programmed standard libraries, eliminating manual programming errors and ensuring compliance.

Temperature and Humidity Precision Requirements

Achieving meaningful cyclic test results demands exceptional environmental control accuracy. Advanced chambers maintain temperature stability within ±0.5°C across the operational range of +10°C to +90°C, utilizing PT100 Class A sensors with sophisticated PID algorithms. Humidity control reaches ±2% RH precision through external isolation stainless steel surface evaporation humidifiers and saturated air barrel preheating systems. Mechanical compression refrigeration with air-cooled condensers enables rapid transitions from high-humidity fog conditions to low-humidity drying phases, critical for accelerated testing protocols.

Coating Degradation Mechanisms Under Cyclic Conditions

Osmotic Blistering Through Moisture Ingress

Protective coatings exhibit semi-permeable membrane characteristics, allowing water molecules to penetrate while blocking larger corrosive ions initially. During humid phases, moisture accumulates at the coating-substrate interface, creating osmotic pressure gradients. Soluble salts deposited during fog phases concentrate at defect sites, generating additional osmotic potential. Repeated wet-dry cycling intensifies blister formation as trapped moisture expands during temperature increases. Cyclic testing accelerates this mechanism through controlled humidity transitions, revealing coating permeability issues within weeks rather than years of field exposure.

Differential Electrochemical Cell Formation

Salt deposits create localized concentration cells across coated surfaces during cyclic exposure in a cyclic corrosion chamber. Dry periods concentrate sodium chloride crystals at coating micro-defects, establishing anodic sites. Adjacent areas with lower salt concentration become cathodic regions. Subsequent humid phases activate these differential cells, driving accelerated localized corrosion. Temperature cycling between 10°C and 90°C modulates electrochemical reaction rates, while SO2 gas introduction (when specified) acidifies the electrolyte, intensifying attack. This synergistic degradation surpasses damage from constant-condition exposure.

Thermal Expansion Mismatch Stresses

Cyclic temperature fluctuations induce repetitive expansion and contraction of coating films and metallic substrates. Mismatched thermal expansion coefficients generate interfacial shear stresses, particularly at coating edges and pre-existing defects. Glass fiber reinforced plastic chamber construction maintains structural integrity through countless thermal cycles while subjecting test specimens to programmed temperature profiles. Automotive clearcoats, powder coatings, and multi-layer protective systems reveal adhesion weaknesses under this mechanical fatigue component combined with chemical attack.

Custom Test Cycles for Different Protective Coating Systems

Automotive OEM Validation Protocols

Automotive manufacturers demand rigorous cyclic testing to validate coatings exposed to de-icing salts, acid rain, and temperature extremes. VW PV 1210 specifies alternating 8-hour salt spray periods at 35°C, 16-hour drying phases at 60°C and 30% RH, creating 24-hour cycles repeated for 10-30 weeks. GMW 14872 incorporates SO2 injection during humid phases, simulating industrial pollution effects on clearcoats and e-coat primers. Programmable controllers supporting 120 programs with 100 steps each accommodate these complex sequences, automatically transitioning between phases without operator intervention.

Aerospace Corrosion Resistance Qualification

Aircraft structural coatings endure altitude-induced temperature variations, marine salt exposure during coastal operations, and aggressive deicing fluids. Aerospace test cycles incorporate extended dry periods at elevated temperatures (70-80°C) to simulate solar heating on tarmac surfaces, followed by rapid cooling to 20°C with high humidity exposure. Chromate-free primer systems and topcoat compatibility receive evaluation through 2,000-4,000 hour cyclic exposures. Centrifugal wind fan circulation ensures uniform environmental distribution across large test panels representing fuselage and wing components.

Marine and Offshore Protective Systems

Coatings for marine vessels, offshore platforms, and coastal infrastructure require validation against continuous salt-laden atmosphere exposure. Modified ASTM B117 protocols extend basic salt spray with daily transitions to 50°C dry conditions, accelerating underfilm corrosion at coating holidays and welds. Thick-film epoxy systems, polyurethane topcoats, and zinc-rich primers undergo cyclic testing to predict service life in splash zones and atmospheric environments. Salt fog collection through fog collectors and fog measure cylinders verifies consistent deposition rates throughout extended test durations.

How to Improve Corrosion Resistance Through Testing?

Iterative Formulation Optimization Processes

Cyclic corrosion testing provides rapid feedback for coating chemists developing improved formulations. Comparing blister ratings, scribe creepage distances, and color retention between formulation variants after 500-1000 hour exposures guides resin selection, pigment loading, and additive incorporation decisions. Testing prototype formulations in chambers featuring glass fiber reinforced plastic construction eliminates contamination concerns that might skew results. Statistical experimental designs optimize multiple variables simultaneously, accelerating development timelines from years to months.

Surface Preparation Protocol Validation

Coating performance depends critically on substrate preparation quality. Cyclic testing in a cyclic corrosion chamber quantifies adhesion differences between solvent cleaning, mechanical abrasion, conversion coating, and grit blasting treatments. Comparing identical coating systems applied over varied surface preparations reveals inadequate cleaning or contamination issues. Automotive manufacturers validate phosphate conversion coating processes through cyclic exposure, ensuring adequate crystal structure formation before e-coat application. Specification development references cyclic test data to establish minimum surface preparation requirements.

Accelerated Service Life Prediction Modeling

Correlation studies between cyclic test results and field exposure data enable predictive service life modeling. Statistical analysis comparing coating failures from 1000-hour cyclic testing with 2-5 year field exposures establishes acceleration factors for specific environments. Automotive coastal exposure correlates with specific VW PV 1210 or GMW cycles, while industrial atmospheres relate to SO2-enhanced protocols. These relationships allow coating manufacturers to confidently predict 10-20 year service life based on controlled laboratory testing, supporting warranty decisions and material selection.

Performance Metrics: Adhesion, Blistering, and Rusting

Quantitative Adhesion Measurement Techniques

Cross-hatch adhesion testing per ASTM D3359 provides standardized assessment of coating-substrate bonding after cyclic exposure. A calibrated cutting tool creates a grid pattern through the coating, followed by pressure-sensitive tape application and rapid removal. Remaining coating percentage determines adhesion classification from 5B (no removal) to 0B (complete delamination). Pull-off adhesion testing using calibrated dollies bonded to coating surfaces quantifies interfacial strength in MPa, revealing degradation from initial post-application values. Tracking adhesion loss versus exposure duration characterizes coating durability.

Blister Density and Size Classification

ASTM D714 establishes standardized visual references for blister assessment, classifying both size (from barely visible to 5mm diameter) and density (few to dense). Cyclic testing typically reveals blistering at coating defects, edges, and areas of inadequate surface preparation. Photographic documentation at regular intervals (every 168 hours) tracks blister evolution, distinguishing between osmotic blisters containing clear fluid and corrosion-driven blisters with rust-stained contents. Advanced evaluation employs digital image analysis for objective, reproducible blister quantification, eliminating subjective inspector variation.

Scribe Creepage and Rust Grade Evaluation

Scribing coated panels with carbide tools to expose bare substrate simulates mechanical damage, stone chips, or handling damage. Measuring coating disbondment distance from the scribe after cyclic exposure quantifies underfilm corrosion resistance - superior coatings maintain <2mm creepage after 1000 hours, while inadequate systems show >5mm. ASTM D610 rust grade evaluation assesses corrosion percentage on exposed substrate areas using photographic standards. Combined scribe and rust metrics provide comprehensive coating performance characterization for specification development and quality control verification.

R&D Applications in Coating Development and Optimization

Novel Corrosion Inhibitor Screening

Developing environmentally compliant alternatives to chromate and lead-based inhibitors requires efficient screening methodologies. Cyclic corrosion chambers enable parallel testing of multiple inhibitor candidates in identical coating matrices, isolating inhibitor effectiveness from formulation variables. Zinc phosphate, molybdate, rare earth, and organic inhibitor systems undergo comparative evaluation through standardized cyclic protocols. Chambers equipped with atomizer towers and spray nozzles manufactured from quartz glass ensure contamination-free testing, preventing false results from equipment-induced chemistry changes. Rapid screening identifies promising candidates for extensive field exposure validation.

Multi-Layer System Compatibility Studies

Modern protective coating systems employ primer, intermediate, and topcoat layers with distinct functions - adhesion promotion, barrier properties, and weathering resistance respectively. Cyclic testing reveals interlayer adhesion issues, solvent attack between incompatible chemistries, and differential thermal expansion problems. Aerospace applications test primer-topcoat compatibility across temperature extremes from -40°C (simulated through pre-cooling) to +90°C. Pneumatic sealing systems prevent environmental leakage during these demanding cycles, maintaining test integrity. Compatibility matrices guide system selection for specific substrates and service environments.

Coating Thickness Optimization Analysis

Increasing coating thickness generally improves corrosion protection but raises material costs and creates application challenges. Cyclic testing different film builds of identical formulations identifies optimal thickness balancing performance and economy. Automotive clearcoats tested at 30μm, 50μm, and 70μm reveal diminishing returns beyond critical thresholds. Industrial maintenance coatings require thickness optimization for brush versus spray application. Data from cyclic chambers with programmable color LCD touchscreen controllers and Ethernet connectivity integrates with laboratory information management systems, facilitating statistical analysis of thickness-performance relationships.

LIB Industry Innovative Systems for Advanced Protective Coating Testing

Comprehensive Environmental Control Architecture

LIB Industry cyclic corrosion chambers integrate mechanical compression refrigeration, external isolation humidification, saturated air barrel preheating, and atomizer tower spray systems into cohesive platforms. The SC-010, SC-016, and SC-020 models offer internal volumes from 780L to 1800L, accommodating component testing through full vehicle body panels. Temperature control from +10°C to +90°C with ±0.5°C fluctuation enables precise protocol execution. Humidity range spanning 30% to 98% RH supports aggressive wet phases and rapid dry-down sequences. SO2 gas control with dedicated NAOH exhaust treatment ensures safe acidic gas testing for industrial atmosphere simulation.

Rapid Transition Capability Engineering

The technical challenge in cyclic testing involves transitioning from 100% RH salt fog conditions to 30% RH drying environments within prescribed timeframes. LIB chambers employ forced air circulation through centrifugal wind fans combined with precision dehumidification via mechanical refrigeration. This dual-approach rapidly removes moisture, achieving target humidity levels in 30-45 minutes versus 2-3 hours for passive systems. Faster transitions enable more cycles per calendar day, reducing total test duration. Automotive OEM protocols requiring 10-week durations complete on schedule without overtime chamber operation.

Global Support and Certification Standards

Serving over 60 countries since 2009, LIB Industry maintains ISO 9001 quality management certification and CE compliance across product lines. Customers including Apple, IBM, Amazon, Intel, SGS, TUV, CERN, BYD, Great Wall Motors, and Mercedes-Benz rely on LIB cyclic corrosion chambers for critical coating qualification. Three-year warranty coverage with lifetime technical support provides operational confidence. Twenty-nine international distributors offer localized service, while direct support centers in Malaysia, Canada, the United Kingdom, and the United States ensure rapid response. Custom engineering capabilities address non-standard requirements, delivering tailored solutions for specialized coating research applications.

Conclusion​​​​​​​

Advanced cyclic corrosion testing fundamentally transforms protective coating development, qualification, and quality assurance processes. The sophisticated environmental cycling protocols employed in modern cyclic corrosion chambers reveal coating vulnerabilities invisible to traditional single-environment testing, enabling accurate service life prediction and formulation optimization. Performance metrics including adhesion retention, blister resistance, and scribe creepage provide quantifiable data supporting specification development and supplier qualification decisions. As industries demand increasingly durable coatings for challenging service environments, cyclic corrosion chambers represent indispensable tools for R&D laboratories, quality control departments, and coating manufacturers pursuing competitive advantage through superior corrosion protection.

FAQ

How does cyclic corrosion testing differ from traditional salt spray testing?

Cyclic testing alternates between salt fog exposure, dry periods, humid conditioning, and ambient recovery, replicating real-world weathering patterns. Traditional salt spray maintains constant conditions, missing degradation mechanisms requiring environmental transitions like osmotic blistering and salt crystallization effects that accelerate coating failure.

What test duration provides meaningful coating performance data?

Automotive applications typically require 1,000-3,000 hours (6-18 weeks) depending on OEM specifications like VW PV 1210 or GMW 14872. Aerospace coatings undergo 2,000-4,000 hour exposures. Marine systems need extended protocols. Duration correlates with intended service life and environment severity.

Can cyclic chambers test coatings with SO2 exposure?

Advanced chambers feature SO2 gas control systems with volume monitoring and NAOH exhaust treatment tanks. SO2 injection simulates industrial pollution effects, acidifying the corrosive environment. This capability addresses ASTM G85 Annex A4 requirements and automotive specifications for regions with significant atmospheric contamination.

Advance your protective coating development with proven cyclic corrosion testing technology. LIB Industry, a leading environmental test chamber manufacturer and supplier with global reach, delivers customized solutions backed by comprehensive engineering expertise. Contact our technical specialists at ellen@lib-industry.com to discuss your specific coating evaluation requirements.

Designing industrial water immersion tanks requires careful consideration of multiple engineering and operational factors to ensure reliable performance in testing environments. These specialized systems must withstand significant pressure, maintain precise depth control, and deliver consistent results across various applications - from automotive component testing to aerospace certification. The design process involves balancing structural integrity, material selection, safety protocols, and user-friendly operation. Understanding these fundamental considerations helps manufacturers and procurement teams select or specify tanks that meet rigorous industry standards while optimizing long-term value and operational efficiency.

What Factors Influence Water Immersion Tank Design?

Application-Specific Testing Requirements

The intended testing application fundamentally shapes every aspect of tank design. Automotive manufacturers require tanks capable of simulating various water depth exposures for component durability testing, while aerospace applications demand precise pressure simulation at specific altitudes. Electronic product manufacturers need controlled environments for IP rating verification, and battery manufacturers require specialized configurations for safety testing. Each application dictates different pressure ranges, immersion durations, and sample accessibility requirements that directly influence tank dimensions, pressure capabilities, and control system sophistication.

Industry Standards and Compliance Frameworks

Regulatory compliance drives critical design parameters across different sectors. International standards such as IEC 60529 for ingress protection testing, MIL-STD specifications for military applications, and ISO certifications for quality management systems establish minimum performance criteria. Compliance requirements affect pressure rating specifications, measurement accuracy thresholds, documentation capabilities, and safety system redundancies. Designers must integrate features that facilitate third-party verification and maintain traceability throughout the testing process to meet certification requirements.

Environmental and Spatial Constraints

Installation environment significantly impacts design choices. Available floor space determines whether cylindrical or rectangular configurations work best. Ceiling height affects overall tank dimensions and lid opening mechanisms - pneumatic versus manual systems. Facility infrastructure including water supply capacity, drainage systems, and electrical power availability influences auxiliary system design. Temperature variations in the installation location may require additional insulation or climate control integration to maintain consistent testing conditions.

Structural Materials and Corrosion Resistance Requirements

Steel Grade Selection and Treatment Processes

Material selection balances strength requirements against corrosion resistance and cost considerations. A3 steel plate provides excellent structural integrity for pressure-bearing applications, particularly when treated with appropriate protective coatings. Wall thickness calculations must account for maximum operating pressure - 50m water depth pressure generates approximately 5 bar (72.5 psi) requiring 15mm thickness for adequate safety margins. Galvanized coatings on fastening components provide additional protection against moisture exposure, extending service life in demanding environments.

Stainless Steel Components for Critical Applications

Internal components exposed to constant water contact benefit from 304 stainless steel construction. Hydraulic rods, sample holders, and measurement probes fabricated from stainless steel resist corrosion from water chemistry variations and maintain dimensional stability through repeated pressure cycles. Mirror-finish surface treatments eliminate microscopic crevices where corrosion initiates, ensuring measurement accuracy remains consistent. The investment in stainless steel for critical components reduces maintenance frequency and prevents contamination of test samples.

Protective Coating Systems and Surface Preparation

Electrostatic powder coating provides superior corrosion protection compared to traditional paint systems. The electrostatic application process ensures uniform coverage on complex geometries, creating a durable barrier against moisture penetration. Proper surface preparation through sandblasting or chemical treatment removes mill scale and contaminants, allowing coatings to bond effectively. Multi-layer coating systems with epoxy primers and polyurethane topcoats offer enhanced protection in high-humidity environments or facilities using aggressive water treatment chemicals.

Tank Size, Load Capacity, and Customization Options

Internal Volume Calculations and Sample Clearance

Effective internal dimensions of a water immersion tank must accommodate test samples with adequate clearance for water circulation and pressure equalization. The R78-600 model provides 600 mm diameter and 1500 mm height, allowing samples positioned at least 1000 mm below the water surface to experience full pressure conditions. This configuration suits medium-sized components while maintaining manageable overall dimensions. Larger samples require proportionally scaled designs, with diameter increases affecting pressure vessel calculations more significantly than height adjustments due to hoop stress considerations.

Load-Bearing Capacity and Support Structures

Foundation design must support both the tank weight and water mass - a 600mm diameter tank filled to 1500mm height contains approximately 424 liters (424kg) of water. The cylindrical design distributes loads evenly, but tripod support systems require careful load distribution analysis to prevent settlement or instability. Adjustable feet allow leveling on uneven floors, maintaining proper sample orientation. Reinforced mounting points for sample fixtures must account for dynamic loads during pressure changes without inducing stress concentrations in tank walls.

Modular Design Approaches for Scalability

Scalable design frameworks enable manufacturers to address diverse customer requirements efficiently. Standardized component interfaces for control systems, pressure sensors, and water supply connections reduce engineering complexity when customizing tank dimensions. Modular lid designs accommodate various access requirements - full-diameter openings for large samples or smaller inspection ports for routine monitoring. This approach balances customization flexibility with manufacturing efficiency, reducing lead times and costs for specialized configurations while maintaining quality consistency.

How to Achieve Precise Control of Depth and Pressure?

Automated Water Level Management Systems

Precision testing requires consistent water depth maintenance throughout test cycles. Automated water supply systems incorporating storage tanks eliminate reliance on facility water pressure fluctuations. Float switches, ultrasonic level sensors, or pressure transducers provide real-time depth monitoring with submillimeter accuracy. Programmable controllers automatically compensate for evaporation or minor leaks, maintaining specified depths over extended test durations. This automation reduces operator intervention and ensures repeatability across multiple test runs.

Pressure Simulation and Monitoring Technologies

Achieving accurate pressure simulation requires understanding the relationship between water depth and pressure - each 10 meters of depth generates approximately 1 bar of pressure. For 50m depth simulation, tanks must maintain stable 5 bar internal pressure. Calibrated pressure transducers continuously monitor actual conditions, providing feedback to control systems. Some applications benefit from supplementary compressed air systems that can augment or reduce pressure independently of water level, enabling specialized test profiles beyond simple depth simulation.

PID Control Integration for Stability

Proportional-Integral-Derivative (PID) programmable controllers optimize system response to maintain target conditions. The proportional component responds to current deviations, integral function eliminates persistent offset errors, and derivative action dampens oscillations during transient conditions. Color LCD touchscreen interfaces simplify parameter adjustment, allowing operators to create complex test profiles with 120 programs containing 100 segments each. Ethernet connectivity enables remote monitoring and data logging, supporting quality management systems and regulatory documentation requirements.

Safety Systems and Operational Efficiency Features

Pressure Relief and Emergency Protocols

Overpressure protection represents a critical safety consideration in a water immersion tank with pressurized water systems. Mechanical pressure relief valves provide failsafe protection independent of electronic controls, automatically venting excess pressure before structural limits are reached. Emergency depressurization systems allow rapid pressure reduction if sample failures or equipment malfunctions occur. Clearly marked emergency stop controls immediately halt all automated functions, placing the system in a safe state. Regular calibration and testing of safety devices maintains reliability throughout the tank's operational life.

Pneumatic Lid Systems and Ergonomic Access

Pneumatic lid operation eliminates manual handling of heavy covers, reducing operator strain and injury risk. Controlled opening speeds prevent rapid pressure equalization that could disturb test samples or create safety hazards. Interlocks prevent lid operation while internal pressure exceeds safe thresholds, ensuring operators cannot access the chamber under dangerous conditions. Gas spring assistance or counterbalance systems maintain lids in open positions without additional support, facilitating sample loading and unloading operations.

User Interface Design and Training Considerations

Intuitive control interfaces reduce operator training time and minimize operational errors. Touch screen controllers with graphical programming interfaces allow technicians to visualize test profiles before execution. Context-sensitive help screens provide guidance without requiring extensive manual reference. Password-protected access levels prevent unauthorized parameter changes while allowing routine operation by qualified personnel. Comprehensive training programs covering normal operation, routine maintenance, and troubleshooting procedures ensure consistent results and extend equipment service life.

Maintenance, Durability, and Lifecycle Considerations

Preventive Maintenance Schedules and Procedures

Establishing routine maintenance intervals maximizes equipment availability and prevents unexpected failures. Daily inspections verify proper water levels, check for visible leaks, and confirm control system functionality. Weekly maintenance includes seal inspection, pressure sensor verification, and water quality assessment. Monthly procedures involve calibration checks, valve operation testing, and coating condition evaluation. Annual comprehensive inspections examine structural integrity, replace wear components, and recertify safety systems. Documentation of all maintenance activities supports quality system requirements and provides data for lifecycle planning.

Component Wear Patterns and Replacement Planning

Understanding predictable wear patterns enables proactive component replacement before failures impact operations. Seals and gaskets typically require replacement every 12-24 months depending on usage intensity. Hydraulic rod seals show gradual degradation through pressure cycling, necessitating inspection during routine maintenance. Electronic components including sensors and control boards have defined service lives influenced by environmental conditions. Maintaining spare parts inventory for critical components minimizes downtime when replacements become necessary. Suppliers offering comprehensive parts support and technical assistance reduce operational risks.

Long-Term Value and Total Cost of Ownership

Evaluating water immersion tanks requires analysis beyond initial purchase price. Energy-efficient designs reduce operational costs through optimized water circulation and heating systems. Durable construction minimizes repair frequency and extends replacement intervals. Modular designs facilitate upgrades as testing requirements evolve, protecting initial investments. Comprehensive warranty coverage and responsive technical support reduce unexpected expenses. Tanks designed for easy disassembly and relocation protect value when facility modifications or expansions occur. Calculating total cost of ownership over expected 10-15 year service lives provides accurate comparison between different design approaches.

LIB Industry Engineered Water Immersion Tanks for Industrial Performance

Comprehensive Turn-Key Solutions

LIB Industry delivers complete environmental testing solutions encompassing research, design, manufacturing, commissioning, installation, and operator training. This integrated approach ensures water immersion tanks meet specific application requirements while seamlessly integrating with existing facility infrastructure. Collaborative design processes incorporate customer input throughout development, addressing unique testing protocols or space constraints. Factory acceptance testing validates performance before shipment, reducing installation delays. On-site commissioning by experienced technicians ensures proper operation and provides hands-on training for customer personnel.

Advanced Controller Technology and Connectivity

The R78-600 model incorporates sophisticated PID programmable color touch screen controllers offering exceptional flexibility. Creating 120 distinct programs with 100 segments each accommodates complex testing protocols including staged pressure increases, hold periods, and controlled depressurization sequences. Ethernet connectivity enables integration with laboratory information management systems (LIMS), facilitating automated data collection and analysis. Remote monitoring capabilities allow supervisory personnel to verify test progress without physically accessing equipment. This technological sophistication supports modern quality management practices and regulatory compliance documentation.

Global Support and Industry Expertise

Serving customers across automotive, aerospace, defense, navigation, military, telecommunications, electronics, photovoltaic, battery, and marine industries, LIB Industry understands diverse testing requirements. This broad experience informs design decisions, incorporating features that address common challenges across multiple sectors. Global support capabilities ensure technical assistance remains available regardless of installation location. Commitment to continuous improvement drives ongoing product development, incorporating customer feedback and emerging testing standards. Partnerships with component suppliers ensure access to latest sensor technology, control systems, and material innovations.

Conclusion​​​​​​​

Designing effective industrial water immersion tanks requires balancing technical specifications, safety requirements, operational efficiency, and long-term value. Structural material selection, precise control systems, robust safety features, and maintainability fundamentally influence performance and total cost of ownership. Applications spanning automotive component validation to aerospace certification demand customized approaches that address specific testing protocols while maintaining regulatory compliance. Partnering with experienced manufacturers who understand these multifaceted requirements ensures installations deliver reliable results throughout extended service lives.

FAQ

What pressure capacity do I need for my water immersion tank?

Pressure requirements depend on testing standards applicable to your products. IP rating verification typically requires 1-3 meters depth (0.1-0.3 bar), while specialized applications may need 50+ meters simulation. Consult relevant industry standards or certification requirements to determine appropriate specifications.

How does tank size affect testing accuracy and sample capacity?

Adequate clearance around samples ensures proper water circulation and uniform pressure distribution. Minimum 100mm clearance on all sides prevents wall effects. Larger tanks accommodate multiple simultaneous samples but require proportionally increased water volume, heating capacity, and floor space for installation.

What maintenance intervals ensure reliable long-term operation?

Daily visual inspections, weekly seal checks, monthly calibration verification, and annual comprehensive examinations form effective maintenance schedules. Usage intensity, water quality, and environmental conditions influence specific intervals. Establishing documentation procedures supports predictive maintenance and regulatory compliance requirements.

Ready to discuss your water immersion tank requirements? LIB Industry, a leading environmental test chamber manufacturer and supplier, provides customized solutions backed by comprehensive engineering expertise and global support. Contact our technical team at ellen@lib-industry.com to explore how our water immersion tanks can enhance your testing capabilities.
