How to Configure IP54 Test Equipment for Reliable Testing?

Setting up IP54 test equipment correctly is essential for achieving consistent and repeatable water-ingress testing. Proper configuration covers more than simply starting the spray system—it includes chamber placement, water supply, specimen positioning, spray conditions, and safety checks.

For electronics, automotive components, enclosures, and other products requiring IP54 testing, the equipment should be configured according to the applicable test requirements and the manufacturer's specifications.

Need IP54 test equipment for your product testing? Request a quote from LIB Industry within 24 hours.

Ensuring Proper Placement, Leveling, and Environmental Conditions

Before operating your IP54 test equipment, place the chamber on a flat and stable surface. Proper leveling helps prevent unwanted vibration or tilting that could affect specimen positioning and test consistency.

Make sure there is sufficient space around the chamber for ventilation, maintenance, and access to power and water connections. The testing area should be clean and suitable for operating environmental test equipment.

Proper installation provides a stable foundation for repeatable testing and helps prevent avoidable operating problems.

Guidelines for Water Quality, Pressure Regulation, and Consistent Spray

Water is a key part of water-ingress testing because it simulates moisture exposure during operation.

Use clean, filtered water where required by the equipment specification to reduce impurities that could clog nozzles or affect the spray system. Before testing, check the water supply, pressure, and connections according to the chamber's operating requirements.

To maintain consistent spray conditions, make sure the water flow is stable and that supply lines and nozzles are free from blockage. Regular inspection of the water system helps maintain consistent test conditions over repeated runs.

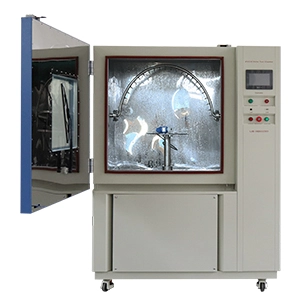

LIB Industry provides water spray test equipment for IP testing, with configurable spray systems and specimen fixtures. View IP water spray test equipment

Best Practices for Secure Specimen Placement and Water Exposure

Positioning the test specimen correctly is as important as configuring the chamber itself.

Secure the specimen firmly using the chamber's mounting rack, turntable, or other appropriate fixture so it does not move during testing. The specimen should be positioned according to the applicable test method rather than simply placed wherever it is easiest to load.

Make sure the required surfaces are exposed to the water spray. For an electronic enclosure, for example, areas such as joints, openings, vents, and seams may require particular attention according to the applicable test procedure.

Correct specimen positioning helps make results more consistent and comparable between tests.

Precisely Setting Spray Duration, Water Flow Rate, and Nozzle Configuration

Spray duration, water flow, and nozzle configuration directly affect the test conditions.

Start by setting the test duration according to the applicable IP test requirement for the product being evaluated. Then verify that the water flow and spray conditions match the equipment specification and test procedure.

Keep the nozzles clean and correctly positioned to maintain uniform spray distribution. If the chamber allows nozzle-angle adjustment, configure the spray direction according to the required test setup rather than simply increasing water exposure.

The goal is not to use more water, but to reproduce the specified test conditions consistently.

Implementing Safety Checks and Precautions

Safety checks should be completed before every test.

Inspect the chamber for visible damage, leaks, loose connections, or abnormal conditions. Check that the water and electrical connections are secure and that the control system is operating normally.

Confirm that emergency-stop functions are accessible and that the chamber door and safety devices work correctly before starting the test. When handling specimens, cleaning the chamber, or performing maintenance, use appropriate protective equipment.

During operation, monitor the chamber for abnormal water leakage, pressure changes, or other unexpected conditions and stop the test if necessary.

Why Proper Configuration Matters

Correctly configuring IP54 test equipment is essential for producing reliable and repeatable water-ingress test results. The chamber location, water supply, specimen position, spray conditions, and safety checks all contribute to stable testing.

When selecting equipment, consider not only the IP test requirement but also specimen dimensions, spray configuration, fixture design, water system, control requirements, and after-sales support.

LIB Industry provides environmental simulation equipment for IP water and dust testing, including customized configurations for different specimen sizes and test requirements. The company provides a 3-Year Manufacturer Warranty / 36 months, lifetime free technical support, traceable factory calibration, 24/7 remote video assistance, and 48-Hour Spare Parts Express via DHL/FedEx.
