Key Standards for Vehicle Rain Test Chambers Explained

Vehicle rain test chambers operate under stringent international standards that ensure automotive components meet water ingress protection requirements across global markets. These testing environments simulate various precipitation conditions to validate IPX ratings, from basic drip resistance (IPX1) to comprehensive spray protection (IPX4). Understanding these standards becomes crucial for manufacturers seeking compliance with automotive regulations, as proper water resistance testing directly impacts vehicle safety, durability, and customer satisfaction. Modern automotive testing facilities rely on standardized protocols that guarantee consistent, repeatable results while meeting diverse regional requirements for water protection certification.

Overview of ISO 20653: Road Vehicles - Degrees of Protection (IP Code)

ISO 20653 serves as the automotive industry's cornerstone standard for ingress protection testing, specifically tailored for road vehicle applications. This comprehensive framework defines protection levels against solid particles and liquid ingress, establishing clear testing methodologies for automotive components.

Understanding IPX Classification Systems

The IPX rating system categorizes protection levels from IPX0 (no protection) through IPX8 (submersion protection). Each level represents specific water resistance capabilities, with IPX1 through IPX4 being most relevant for vehicle rain test chamber applications. IPX1 testing involves vertical dripping water at 1mm per minute, while IPX4 encompasses omnidirectional water spray protection.

Automotive-Specific Testing Parameters

Vehicle rain test chambers must accommodate larger test specimens compared to standard electronic device testing. ISO 20653 specifies unique requirements for automotive applications, including modified test durations, specialized mounting configurations, and adjusted water flow rates. These parameters account for vehicle-specific geometries and operational environments that differ significantly from consumer electronics.

Regional Variations and Compliance Requirements

Different markets impose varying interpretations of ISO 20653 standards. European automotive manufacturers often require additional testing cycles, while Asian markets may emphasize specific environmental conditions. Understanding these regional nuances ensures global market acceptance and reduces compliance-related delays during product launches.

How Does IEC 60529 Define Ingress Protection (IP) Testing?

IEC 60529 establishes the foundational framework for ingress protection testing, providing the technical basis that automotive standards like ISO 20653 build upon. This international electrotechnical standard defines testing equipment specifications, measurement procedures, and acceptance criteria.

Standard Test Equipment Specifications

IEC 60529 mandates specific nozzle types, water pressure ranges, and spray patterns for each IPX level. Vehicle rain test chambers must incorporate oscillating spray arms with precisely positioned holes, typically 0.4mm in diameter with 50mm spacing. Water pressure control systems maintain consistent flow rates throughout testing cycles, ensuring reproducible results across different facilities.

Duration and Intensity Requirements

Testing durations vary significantly based on IPX ratings, ranging from 10 minutes for IPX1 to several hours for comprehensive IPX4 evaluation. Water application rates increase progressively, with IPX4 testing requiring 10 liters per minute per square meter of spray coverage. These specifications ensure thorough evaluation under controlled conditions.

Measurement and Documentation Standards

Proper documentation becomes essential for IEC 60529 compliance, requiring detailed records of water ingress locations, quantities, and timing. Test facilities must maintain calibrated measurement systems, environmental monitoring equipment, and traceability documentation. Regular equipment calibration ensures measurement accuracy and regulatory compliance.

Understanding OEM-Specific Specifications and Test Cycles

Original Equipment Manufacturers (OEMs) frequently develop proprietary testing specifications that exceed standard requirements, addressing unique vehicle designs and target market conditions. These customized protocols often incorporate multiple testing phases and specialized evaluation criteria.

Extended Duration Testing Protocols

Many automotive OEMs require testing cycles extending beyond standard durations, sometimes incorporating multiple rain intensities within single test sessions. These extended protocols simulate real-world exposure scenarios more accurately, including variable precipitation patterns and wind-driven rain conditions. Vehicle rain test chambers must accommodate these complex cycling requirements through programmable control systems.

Multi-Directional Spray Testing

Advanced OEM specifications often mandate multi-angle spray testing to evaluate component protection under various vehicle orientations and driving conditions. This requires sophisticated spray arm positioning systems capable of precise angular adjustments and coordinated movement patterns. Testing may include overhead, lateral, and upward spray configurations.

Temperature and Humidity Variations

Sophisticated OEM testing protocols incorporate environmental variations during water spray cycles, including temperature fluctuations and humidity changes. These conditions simulate seasonal weather patterns and geographic climate variations, ensuring component reliability across diverse operating environments. Chamber control systems must maintain precise environmental conditions throughout testing.

The Role of SAE J and Other Automotive Engineering Standards

Society of Automotive Engineers (SAE) standards complement ISO requirements by addressing North American automotive market needs and providing additional testing methodologies for specific component categories.

SAE J575 Water Leak Testing Standards

SAE J575 specifically addresses automotive lighting component water resistance testing, establishing protocols that integrate seamlessly with vehicle rain test chamber operations. This standard defines spray patterns, duration requirements, and acceptance criteria for headlamps, taillights, and interior lighting systems. Testing procedures accommodate various mounting configurations and electrical connections.

Integration with ASTM Testing Methods

American Society for Testing and Materials (ASTM) standards provide supplementary testing methodologies that enhance comprehensive water resistance evaluation. ASTM D4168 covers water penetration testing for building materials, offering relevant techniques for automotive sealing systems. These standards provide valuable insights for material selection and component design optimization.

Harmonization Across International Standards

Modern vehicle rain test chambers must accommodate multiple standard requirements simultaneously, requiring flexible control systems and adaptable spray configurations. Equipment manufacturers increasingly design chambers capable of switching between different standard protocols, enabling comprehensive testing campaigns without equipment changes. This flexibility reduces testing costs and improves laboratory efficiency.

Why Are Standardized Nozzle Types and Pressures Mandated?

Precise control of water delivery systems ensures consistent testing conditions across different facilities and geographic locations, enabling reliable comparison of test results and component performance validation.

Nozzle Design and Performance Characteristics

Standard nozzle specifications ensure uniform water droplet size distribution, spray patterns, and flow characteristics. The 0.4mm diameter requirement produces droplets that simulate natural rainfall while maintaining reproducible spray patterns. Nozzle material selection affects durability and spray consistency, with stainless steel construction providing optimal corrosion resistance and dimensional stability.

Pressure Control System Requirements

Water pressure regulation systems maintain consistent spray characteristics throughout testing cycles, compensating for supply pressure variations and system pressure drops. Automated pressure control prevents test result variations caused by infrastructure limitations or seasonal supply pressure changes. Flow meter integration enables real-time monitoring and automatic adjustments.

Spray Pattern Uniformity Standards

Standardized spray arm configurations ensure uniform water distribution across test specimens, eliminating testing bias caused by uneven water exposure. Oscillating mechanisms provide comprehensive coverage while maintaining controlled spray patterns. Pattern verification procedures validate system performance and ensure compliance with standard requirements.

Ensuring Repeatability and Compliance Across Global Markets

Achieving consistent test results across different facilities and geographic regions requires standardized procedures, calibrated equipment, and comprehensive quality management systems.

Calibration and Verification Procedures

Regular equipment calibration ensures measurement accuracy and maintains traceability to international standards. Flow rate verification, pressure calibration, and spray pattern validation must occur at specified intervals. Documentation of calibration activities provides evidence of compliance and enables trend analysis for equipment performance monitoring.

Quality Management System Integration

Comprehensive quality management systems incorporate testing procedures, equipment maintenance schedules, and personnel training requirements. These systems ensure consistent application of testing standards while providing continuous improvement mechanisms. Regular internal audits validate procedure compliance and identify optimization opportunities.

International Laboratory Accreditation

Many automotive manufacturers require testing at accredited laboratories, necessitating compliance with ISO/IEC 17025 requirements. Accreditation demonstrates technical competence and ensures quality management system effectiveness. Regular surveillance audits maintain accreditation status and validate ongoing compliance with international standards.

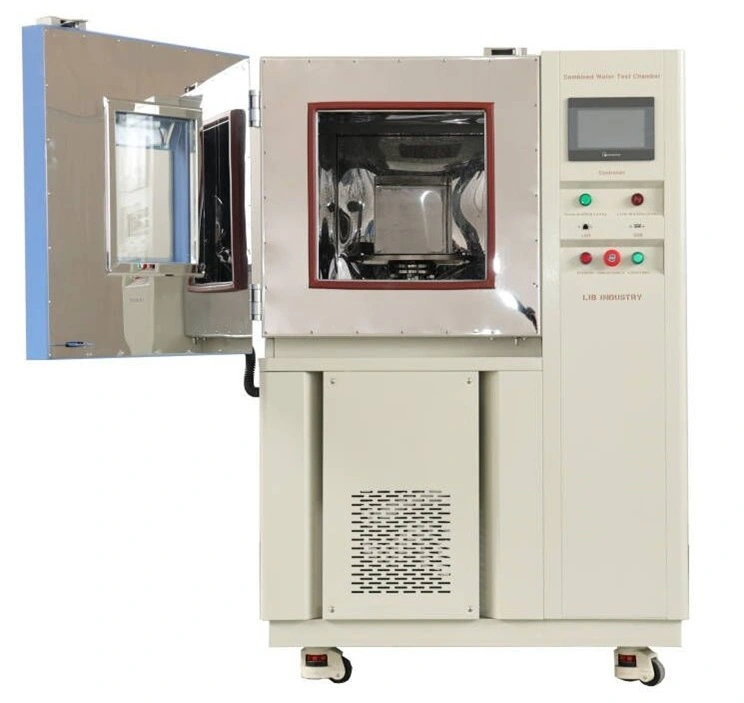

LIB Rain Test Chamber: Built for Global Compliance

LIB Industry's vehicle rain test chambers incorporate advanced technologies and design features that ensure compliance with multiple international standards while providing exceptional testing flexibility and reliability.

Advanced Control System Integration

The programmable color LCD touch screen controller enables precise management of testing parameters, including spray patterns, duration settings, and environmental conditions. Ethernet connectivity facilitates remote monitoring and data collection, while USB capability enables convenient data export for analysis and reporting. Integrated software compatibility streamlines laboratory workflow integration.

Comprehensive Safety and Protection Systems

Multiple safety systems protect both equipment and personnel during testing operations. Over-temperature protection prevents equipment damage during extended testing cycles, while over-current protection safeguards electrical systems. Water shortage protection ensures adequate spray system operation, and earth leakage protection provides personnel safety. Phase sequence protection prevents equipment damage from electrical supply variations.

Flexible Configuration Options

Multiple chamber sizes accommodate diverse testing requirements, from compact components to complete vehicle assemblies. Adjustable oscillating tube angles (±45° to ±180°) enable customized spray patterns for specific testing protocols. Variable turntable rotation speeds provide comprehensive specimen exposure, while modular water supply systems adapt to facility requirements.

FAQs

What IPX ratings can vehicle rain test chambers evaluate?

Modern vehicle rain test chambers typically evaluate IPX1 through IPX4 protection levels, covering vertical dripping water through omnidirectional spray protection according to ISO 20653 and IEC 60529 standards.

How long do standard automotive water resistance tests require?

Test durations vary by IPX rating and OEM specifications, ranging from 10 minutes for basic IPX1 testing to several hours for comprehensive IPX4 evaluation cycles.

Can one test chamber accommodate multiple international testing standards?

Advanced test chambers feature programmable control systems and flexible spray configurations that enable switching between ISO 20653, IEC 60529, SAE, and OEM-specific testing protocols seamlessly.
