Name: Sand Dust Test Chamber
SKU: N/A

Sand Dust Test Chamber Manufacturer & Supplier

We're professional sand dust test chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.

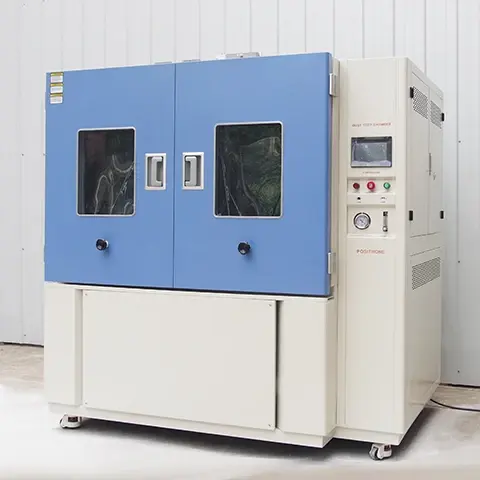

The LIB Industry Sand Dust Test Chamber provides a reliable solution for evaluating the sand and dust resistance of electrical enclosures and components. Realistic test conditions ensure products meet protection standards for dust environments.

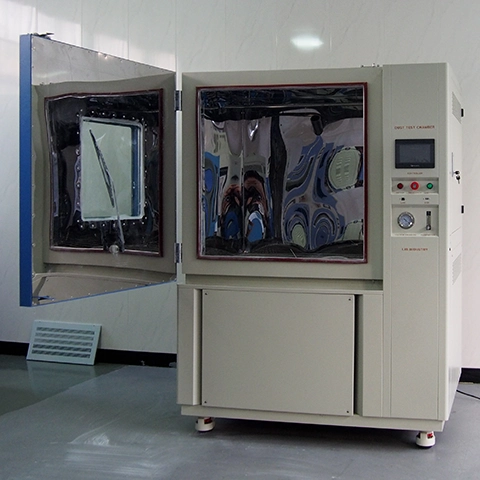

The LIB Industry sand and dust test chamber features a compact stainless steel construction resistant to corrosion. The test enclosure provides 1 cubic meter volume to accommodate various product sizes. Testing can determine IP ratings for dust ingress protection from IP5X to IP6X EN 60529.

Technical Parameters

Model	DI-800	DI-1000	DI-1500	DI-2000
Internal Dimension (mm)	80010001000	100010001000	100015001000	100020001000
Overall Dimension (mm)	104014501960	133014501960	133019501990	133024501990
Useful Volume (L)	800	1000	1500	2000
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Fight Time	0 ~ 99H59M
Blowing Time	0 ~ 99H59M
Specimen Power Outlet	Dust-proof socket 16A
Vacuum System	Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Controller	Programmable color LCD touch screen controller, Ethernet connection
Door Lock	Electromagnetic lock
Safety Device	Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection
Exterior Material	A3 Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	Sample shelf, dust wiper, talcum powder(5kgs)

Product Details

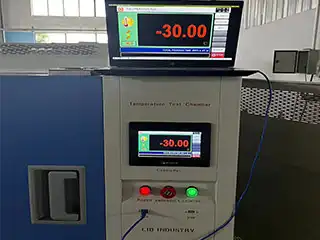

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data

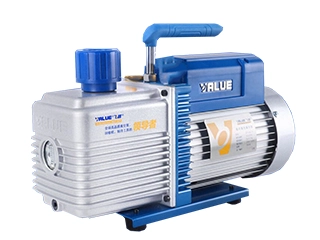

Vacuum Pump

Vacuum pump is used to evacuate the test sample.

There is a vacuum interface in the workroom, which can be directly connected to the sample.

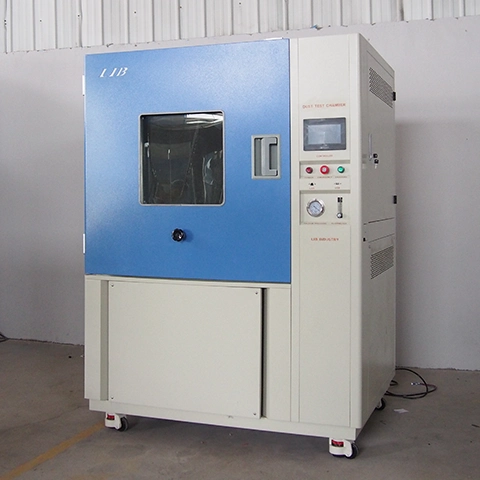

Castors

Install 4 castors for ease moving, and with brakes function.

Caster height adjustable.

Key Features & Technical Highlights

Comprehensive Sand & Dust Simulation: Fully compliant with IEC 60529 (IP5X/IP6X), ISO 20653, IEC 60068-2-68, and MIL-STD-810G/H dust test standards.
Clog-Free Powder Recycling System: Integrated bottom funnel equipped with a heating element and automatic vibration motor keeps talcum powder dry, fluid, and flowing smoothly without clumping.
Built-In Negative Pressure Vacuum System: Features an integrated vacuum pump, airflow pressure regulator, pressure differential gauge, and air filter for seamless IP6X airtight dust testing.
Precision Airflow & Concentration Control: Programmable blowing and suspension cycles from 0 to 99 hours and 59 minutes, with controllable air velocity for realistic field simulation.
SUS304 Stainless Steel Construction: Corrosion-resistant, heavy-duty interior with electromagnetic door locks and a built-in window wiper for clear visibility.

Applications

The LIB Industry Sand Dust Chamber is ideal for testing products such as:

●Outdoor enclosures and cabinets

●Construction equipment

●Agricultural electronics

●Mining equipment

●Military electronics

●Automotive components

●Aerospace avionics

●Instrumentation for oil and gas

Frequently Asked Questions (FAQ)

Q1: What type of dust or sand is required for IP5X and IP6X testing?

Standard IP5X and IP6X tests typically use dry talcum powder with a mesh size of 75 µm and a wire diameter of 50 µm. We provide 5 kg of standard talcum powder with the chamber, and custom media options, such as Arizona dust and Portland cement, can be accommodated upon request.

Q2: How often should the talcum powder in the chamber be replaced?

For accurate test results, the powder should be replaced after approximately 20 to 30 test cycles, or whenever it shows signs of contamination or moisture buildup. The integrated funnel heater helps maintain powder dryness between cycles.

Q3: Can I run tests on powered-on (energized) samples?

Yes, the chamber is equipped with a built-in 16A dust-proof specimen power outlet and sealed cable access ports, allowing you to power up test samples, such as automotive lights or sensors, during the test.

Q4: What is the difference between IP5X and IP6X testing in this chamber?

IP5X (dust-protected) allows a limited amount of dust ingress provided it does not interfere with safe operation. IP6X (dust-tight) requires no dust ingress under negative pressure, which is achieved using the chamber’s built-in vacuum system.

Q5: What warranty and technical support are included with the equipment?

We offer a comprehensive 3-year warranty (36 months) covering all functional components, along with lifetime technical support. Free replacement parts are dispatched within 48 hours if needed, and our engineers provide 24/7 remote video assistance for operation and maintenance.

How to Maitain Sand Dust Test Chamber?

To maintain a sand dust test chamber, you should follow these steps:

1. Regular Cleaning: Clean the chamber regularly to remove any dust or sand particles that may have accumulated on the walls, floor, or equipment.

2. Inspect Seals: Inspect the seals on the chamber door and windows to ensure they are intact and not damaged.

3. Calibrate Equipment: Calibrate the dust chamber annually to ensure accurate testing results.

4. Follow Manufacturer's Guidelines: Follow the manufacturer's guidelines for usage, maintenance, and safety precautions specific to your sand dust test chambers model.

5. Train Staff: Train the staff responsible for operating and maintaining the chamber on proper procedures and safety protocols to ensure efficient and safe operation.
